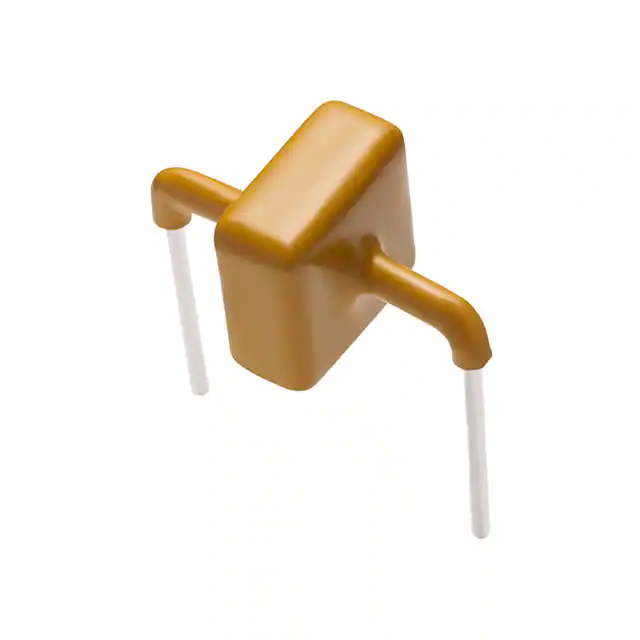

| Part Number | AK3-170C-Y | AK3-190C-Y | AK6-170C-Y | AK3-150C-Y |
|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener |
| Unidirectional Channels | - | - | - | - |
| Bidirectional Channels | 1 | 1 | 1 | 1 |
| Voltage - Reverse Standoff (Typ) | 170V | 190V | 170V | 150V |
| Voltage - Breakdown (Min) | 179V | 200V | 180V | 158V |
| Voltage - Clamping (Max) @ Ipp | 260V | 290V | 260V | 230V |
| Current - Peak Pulse (10/1000µs) | 3000A (3kA) (8/20µs) | 3000A (3kA) (8/20µs) | 6000A (6kA) (8/20µs) | 3000A (3kA) (8/20µs) |
| Power - Peak Pulse | - | - | - | - |
| Power Line Protection | No | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | 2400pF @ 10kHz | 2400pF @ 10kHz | 2800pF @ 10kHz | 2600pF @ 10kHz |
| Operating Temperature | -55°C ~ 125°C (TJ) | -55°C ~ 125°C (TJ) | -55°C ~ 125°C (TJ) | -55°C ~ 125°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial, Right Angle Bend (24.15mm Center) | Axial, Right Angle Bend (24.15mm Center) | Axial, Right Angle Bend (24.15mm Center) | Axial, Right Angle Bend (24.15mm Center) |
| Supplier Device Package | Axial | Axial | Axial | Axial |
