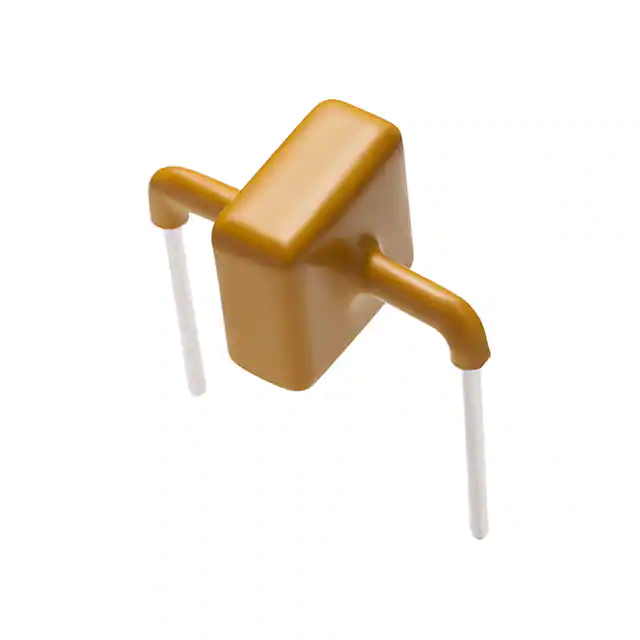

| Part Number | AK10-076C-Y | AK20-076C-Y | AK15-076C-Y | AK1-076C-Y | AK10-066C-Y |
|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | - | - | - | - | - |
| Bidirectional Channels | 1 | 1 | 1 | 1 | 1 |
| Voltage - Reverse Standoff (Typ) | 76V | 76V | 76V | 76V | 66V |
| Voltage - Breakdown (Min) | 85V | 85V | 85V | 85V | 72V |
| Voltage - Clamping (Max) @ Ipp | 140V | 160V | 150V | 140V | 120V |
| Current - Peak Pulse (10/1000µs) | 10000A (10kA) (8/20µs) | 20000A 20kA (8/20µs) | 15000A (15kA) (8/20µs) | 1000A (1kA) (8/20µs) | 10000A (10kA) (8/20µs) |
| Power - Peak Pulse | - | - | - | - | - |
| Power Line Protection | No | No | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | 6500pF @ 10kHz | 10000pF @ 10kHz | 10000pF @ 10kHz (Max) | 8500pF @ 10kHz | 6500pF @ 10kHz |
| Operating Temperature | -55°C ~ 125°C (TJ) | -55°C ~ 125°C (TJ) | -55°C ~ 125°C (TJ) | -55°C ~ 125°C (TJ) | -55°C ~ 125°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial, Right Angle Bend (24.15mm Center) | Axial, Right Angle Bend (24.15mm Center) | Axial, Right Angle Bend (24.15mm Center) | Axial, Right Angle Bend (24.15mm Center) | Axial, Right Angle Bend (24.15mm Center) |
| Supplier Device Package | Axial | Axial | Axial | Axial | Axial |
