Littelfuse Inc.-AK10-058C-12 - TVS - Diodes Product Specifications and Latest Quotes

Type:	Zener
Unidirectional Channels:	-
Bidirectional Channels:	1
Voltage - Reverse Standoff (Typ):	58V
Voltage - Breakdown (Min):	64V
Voltage - Clamping (Max) @ Ipp:	110V
Current - Peak Pulse (10/1000µs):	10000A (10kA) (8/20µs)
Power - Peak Pulse:	-
Power Line Protection:	No
Applications:	General Purpose
Capacitance @ Frequency:	6500pF @ 10kHz
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	Axial, Right Angle Bend (24.15mm Center)
Supplier Device Package:	Axial

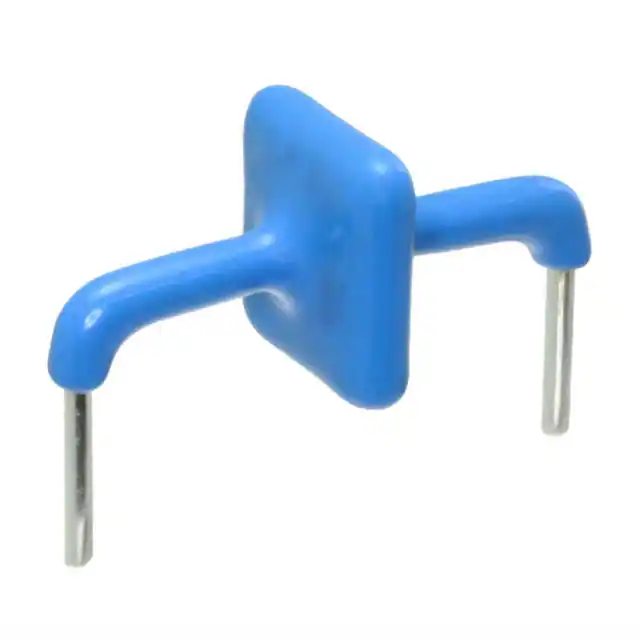

Littelfuse Inc. AK10-058C-12
