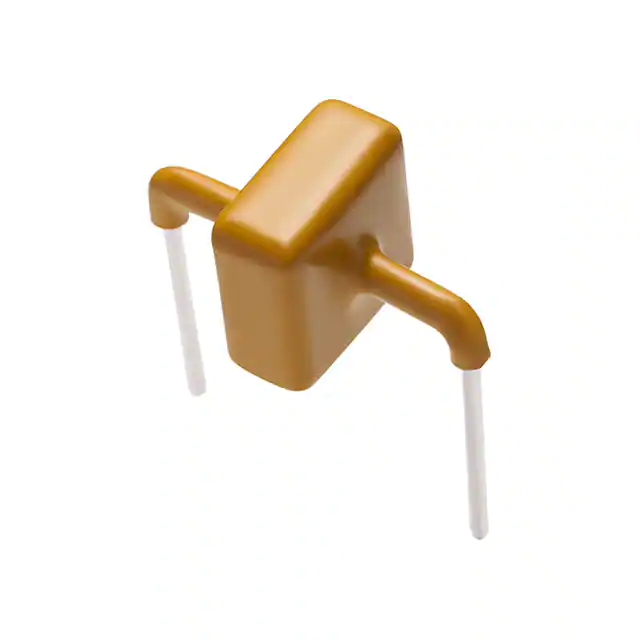

| Part Number | AK10-030C-Y | AK10-430C-Y | AK10-033C-Y | AK10-530C-Y |
|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener |
| Unidirectional Channels | - | - | - | - |
| Bidirectional Channels | 1 | 1 | 1 | 1 |
| Voltage - Reverse Standoff (Typ) | 30V | 430V | 33V | 530V |
| Voltage - Breakdown (Min) | 32V | 440V | 36V | 560V |
| Voltage - Clamping (Max) @ Ipp | 58V | 625V | 53V | 750V |
| Current - Peak Pulse (10/1000µs) | 10000A (10kA) (8/20µs) | 10000A (10kA) (8/20µs) | 10000A (10kA) (8/20µs) | 10000A (10kA) (8/20µs) |
| Power - Peak Pulse | - | - | - | - |
| Power Line Protection | No | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | 11000pF @ 10kHz | 1400pF @ 10kHz | - | 1000pF @ 10kHz |
| Operating Temperature | -55°C ~ 125°C (TJ) | -55°C ~ 125°C (TJ) | -55°C ~ 125°C (TJ) | -55°C ~ 125°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial, Right Angle Bend (24.15mm Center) | Axial, Right Angle Bend (24.15mm Center) | Axial, Right Angle Bend (24.15mm Center) | Axial, Right Angle Bend (24.15mm Center) |
| Supplier Device Package | Axial | Axial | Axial | Axial |
