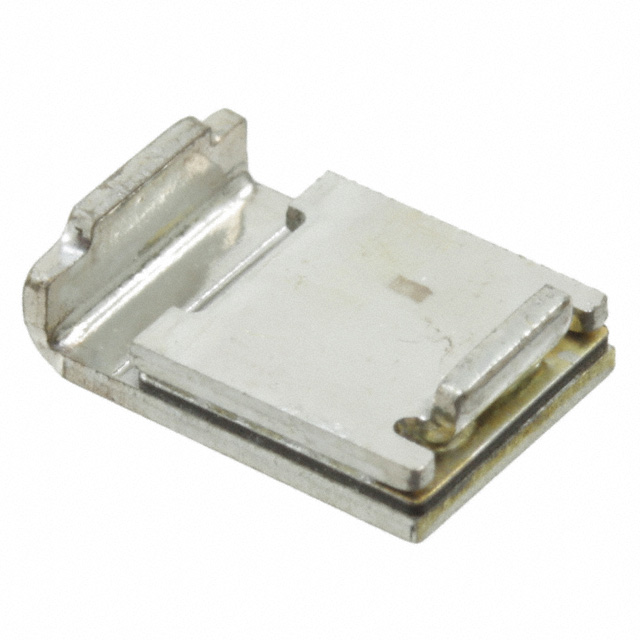

| Part Number | AHS160-2 | AHS120-2 |
|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active |
| Type | Polymeric | Polymeric |
| Voltage - Max | 16V | 16V |
| Current - Max | 70 A | 50 A |
| Current - Hold (Ih) (Max) | 1.6 A | 1.2 A |
| Current - Trip (It) | 3.2 A | 2.3 A |
| Time to Trip | 15 s | 2 s |
| Resistance - Initial (Ri) (Min) | 50 mOhms | 150 mOhms |
| Resistance - Post Trip (R1) (Max) | 150 mOhms | 340 mOhms |
| Resistance - 25°C (Typ) | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Ratings | AEC-Q200 | AEC-Q200 |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 2-SMD | 2-SMD |
| Size / Dimension | 0.343" L x 0.250" W (8.70mm x 6.36mm) | 0.290" L x 0.202" W (7.36mm x 5.12mm) |
| Height - Seated (Max) | - | - |
| Thickness (Max) | 0.118" (3.00mm) | 0.118" (3.00mm) |
| Lead Spacing | - | - |
