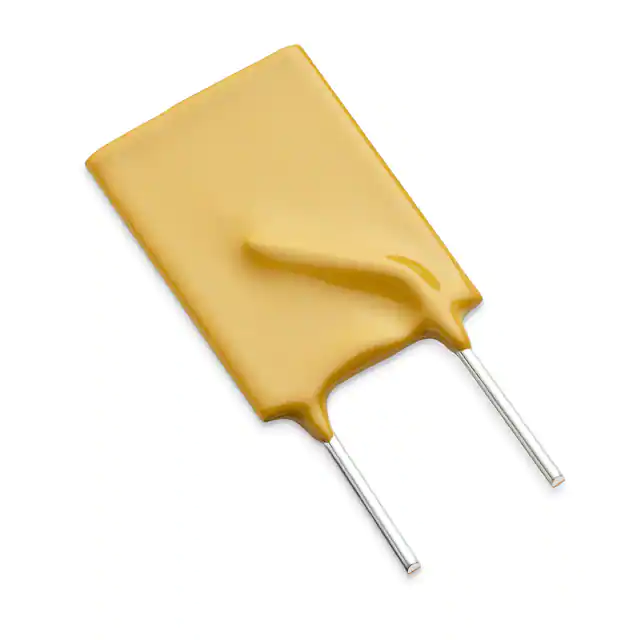

| Part Number | AHRL1300 | AHRL1400 | AHRL1500 | AHRF1300 | AHRL1000 | AHRL1100 | AHRL1200 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Type | Polymeric | Polymeric | Polymeric | Polymeric | Polymeric | Polymeric | Polymeric |
| Voltage - Max | 16V | 16V | 16V | 16V | 16V | 16V | 16V |
| Current - Max | 100 A | 100 A | 100 A | 100 A | 100 A | 100 A | 100 A |
| Current - Hold (Ih) (Max) | 13 A | 14 A | 15 A | 13 A | 10 A | 11 A | 12 A |
| Current - Trip (It) | 26 A | 28 A | 30 A | 27 A | 20 A | 22 A | 24 A |
| Time to Trip | 14 s | 16 s | 18 s | 15 s | 10 s | 11.2 s | 12.5 s |
| Resistance - Initial (Ri) (Min) | 3.3 mOhms | 3.1 mOhms | 2.9 mOhms | 3.4 mOhms | 4.2 mOhms | 3.8 mOhms | 3.5 mOhms |
| Resistance - Post Trip (R1) (Max) | 5.3 mOhms | 4.8 mOhms | 4.3 mOhms | 10 mOhms | 6.8 mOhms | 6.3 mOhms | 5.8 mOhms |
| Resistance - 25°C (Typ) | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc |
| Size / Dimension | 0.685" L x 0.142" W (17.40mm x 3.60mm) | 0.685" L x 0.142" W (17.40mm x 3.60mm) | 0.724" L x 0.142" W (18.40mm x 3.60mm) | 0.925" L x 0.138" W (23.50mm x 3.50mm) | 0.567" L x 0.142" W (14.40mm x 3.60mm) | 0.685" L x 0.142" W (17.40mm x 3.60mm) | 0.685" L x 0.142" W (17.40mm x 3.60mm) |
| Height - Seated (Max) | 0.976" (24.80mm) | 1.039" (26.40mm) | 1.039" (26.40mm) | 1.130" (28.70mm) | 0.882" (22.40mm) | 0.882" (22.40mm) | 0.921" (23.40mm) |
| Thickness (Max) | - | - | - | - | - | - | - |
| Lead Spacing | 0.400" (10.15mm) | 0.400" (10.15mm) | 0.400" (10.15mm) | 0.400" (10.15mm) | 0.400" (10.15mm) | 0.400" (10.15mm) | 0.400" (10.15mm) |
