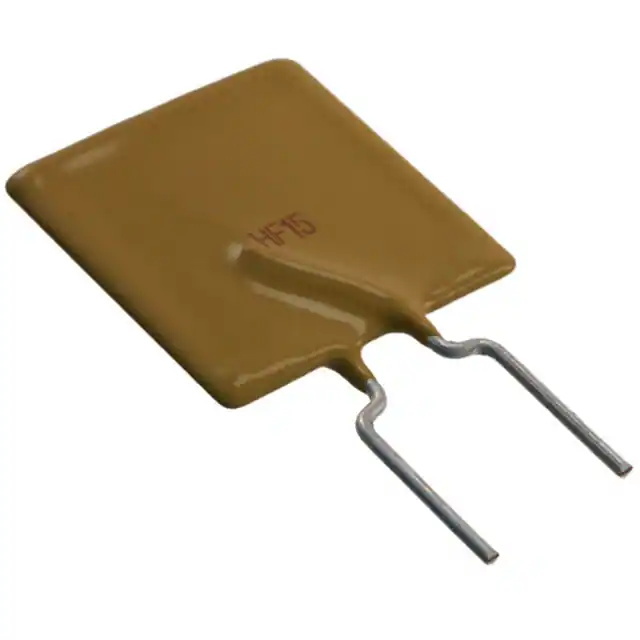

| Part Number | AHRF1500 | AHRL1500 | AHRF100 | AHRF1000 | AHRF1100 | AHRF1300 | AHRF1400 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Type | Polymeric | Polymeric | Polymeric | Polymeric | Polymeric | Polymeric | Polymeric |
| Voltage - Max | 16V | 16V | 30V | 16V | 16V | 16V | 16V |
| Current - Max | 100 A | 100 A | 40 A | 100 A | 100 A | 100 A | 100 A |
| Current - Hold (Ih) (Max) | 15 A | 15 A | 1 A | 10 A | 11 A | 13 A | 14 A |
| Current - Trip (It) | 33 A | 30 A | 1.9 A | 20.5 A | 21.2 A | 27 A | 28.3 A |
| Time to Trip | 20 s | 18 s | 6.2 s | 10.5 s | 11 s | 15 s | 15.5 s |
| Resistance - Initial (Ri) (Min) | 2.7 mOhms | 2.9 mOhms | 150 mOhms | 5.1 mOhms | 4.8 mOhms | 3.4 mOhms | 2.9 mOhms |
| Resistance - Post Trip (R1) (Max) | 9.2 mOhms | 4.3 mOhms | 430 mOhms | 15 mOhms | 13 mOhms | 10 mOhms | 9 mOhms |
| Resistance - 25°C (Typ) | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc |
| Size / Dimension | 0.925" L x 0.138" W (23.50mm x 3.50mm) | 0.724" L x 0.142" W (18.40mm x 3.60mm) | 0.382" Dia x 0.118" T (9.70mm x 3.00mm) | 0.689" L x 0.118" W (17.50mm x 3.00mm) | 0.827" L x 0.118" W (21.00mm x 3.00mm) | 0.925" L x 0.138" W (23.50mm x 3.50mm) | 0.925" L x 0.142" W (23.50mm x 3.60mm) |
| Height - Seated (Max) | 1.130" (28.70mm) | 1.039" (26.40mm) | 0.535" (13.60mm) | 1.043" (26.50mm) | 1.028" (26.10mm) | 1.130" (28.70mm) | 1.126" (28.60mm) |
| Thickness (Max) | - | - | - | - | - | - | - |
| Lead Spacing | 0.400" (10.15mm) | 0.400" (10.15mm) | 0.199" (5.05mm) | 0.400" (10.15mm) | 0.400" (10.15mm) | 0.400" (10.15mm) | 0.400" (10.15mm) |
