Please send RFQ , we will respond immediately.

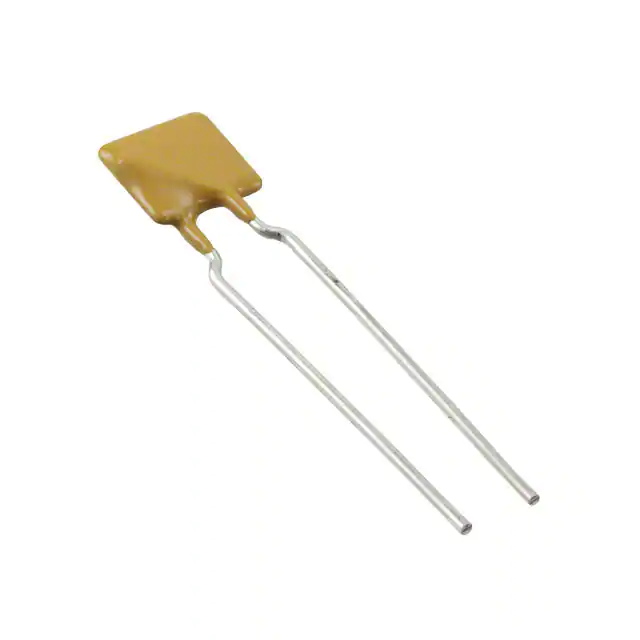

| Part Number | AGRF800S-2 | AGRF800-2 | AGRF800S-1 |
|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Obsolete | Active | Active |
| Type | Polymeric | Polymeric | Polymeric |
| Voltage - Max | 16V | 16V | 16V |
| Current - Max | 100 A | 100 A | 100 A |
| Current - Hold (Ih) (Max) | 8 A | 8 A | 8 A |
| Current - Trip (It) | 15 A | 15 A | 15 A |
| Time to Trip | 5.5 s | 5.5 s | 5.5 s |
| Resistance - Initial (Ri) (Min) | 4.9 mOhms | 4.9 mOhms | 17.5 mOhms |
| Resistance - Post Trip (R1) (Max) | 17.5 mOhms | 17.5 mOhms | 18.1 mOhms |
| Resistance - 25°C (Typ) | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Disc | Radial, Disc | Radial, Disc |
| Size / Dimension | 0.500" L x 0.118" W (12.70mm x 3.00mm) | 0.500" L x 0.118" W (12.70mm x 3.00mm) | 0.118" L x 0.118" W (3.00mm x 3.00mm) |
| Height - Seated (Max) | 0.823" (20.90mm) | 0.874" (22.20mm) | 0.874" (22.20mm) |
| Thickness (Max) | - | - | - |
| Lead Spacing | 0.200" (5.08mm) | 0.199" (5.05mm) | 0.199" (5.05mm) |
