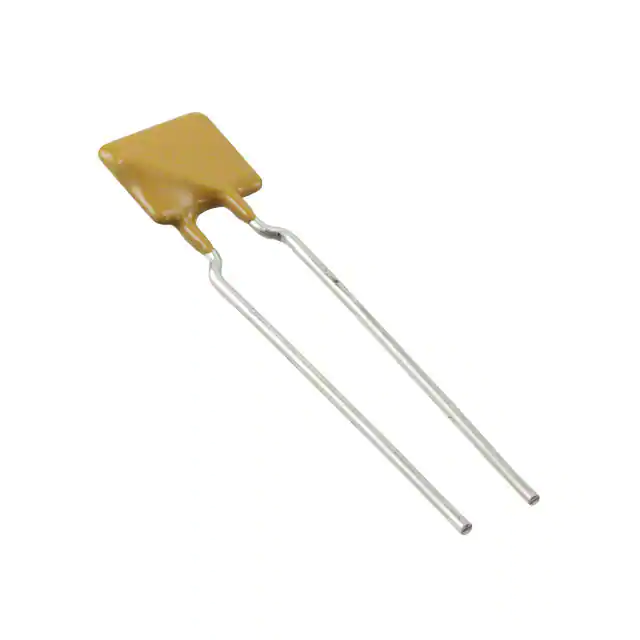

| Part Number | AGRF800 | AHRF800 | AGRF900 | AGRF800S | AGRF400 | AGRF500 | AGRF600 | AGRF700 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Obsolete | Active | Active | Active | Active |
| Type | Polymeric | Polymeric | Polymeric | Polymeric | Polymeric | Polymeric | Polymeric | Polymeric |
| Voltage - Max | 16V | 16V | 16V | 16V | 16V | 16V | 16V | 16V |
| Current - Max | 100 A | 100 A | 100 A | 100 A | 100 A | 100 A | 100 A | 100 A |
| Current - Hold (Ih) (Max) | 8 A | 8 A | 9 A | 8 A | 4 A | 5 A | 6 A | 7 A |
| Current - Trip (It) | 15 A | 15 A | 16.5 A | 15 A | 7.6 A | 9.4 A | 10.7 A | 13.2 A |
| Time to Trip | 5.5 s | 8 s | 6 s | 5.5 s | 2 s | 2.5 s | 3.5 s | 4 s |
| Resistance - Initial (Ri) (Min) | 4.9 mOhms | 7.2 mOhms | 4.1 mOhms | 4.9 mOhms | 18.6 mOhms | 14 mOhms | 9.5 mOhms | 6.6 mOhms |
| Resistance - Post Trip (R1) (Max) | 17.5 mOhms | 20 mOhms | 13.5 mOhms | 17.5 mOhms | 61 mOhms | 34 mOhms | 28 mOhms | 20 mOhms |
| Resistance - 25°C (Typ) | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 125°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc |
| Size / Dimension | 0.500" L x 0.118" W (12.70mm x 3.00mm) | 0.650" L x 0.118" W (16.50mm x 3.00mm) | 0.551" L x 0.118" W (14.00mm x 3.00mm) | 0.500" L x 0.118" W (12.70mm x 3.00mm) | 0.350" L x 0.118" W (8.90mm x 3.00mm) | 0.409" Dia x 0.122" T (10.40mm x 3.10mm) | 0.421" L x 0.118" W (10.70mm x 3.00mm) | 0.441" L x 0.118" W (11.20mm x 3.00mm) |
| Height - Seated (Max) | 0.874" (22.20mm) | 0.886" (22.50mm) | 0.906" (23.00mm) | 0.823" (20.90mm) | 0.555" (14.10mm) | 0.614" (15.60mm) | 0.724" (18.40mm) | 0.827" (21.00mm) |
| Thickness (Max) | - | - | - | - | - | - | - | - |
| Lead Spacing | 0.199" (5.05mm) | 0.199" (5.05mm) | 0.199" (5.05mm) | 0.200" (5.08mm) | 0.199" (5.05mm) | 0.199" (5.05mm) | 0.199" (5.05mm) | 0.199" (5.05mm) |
