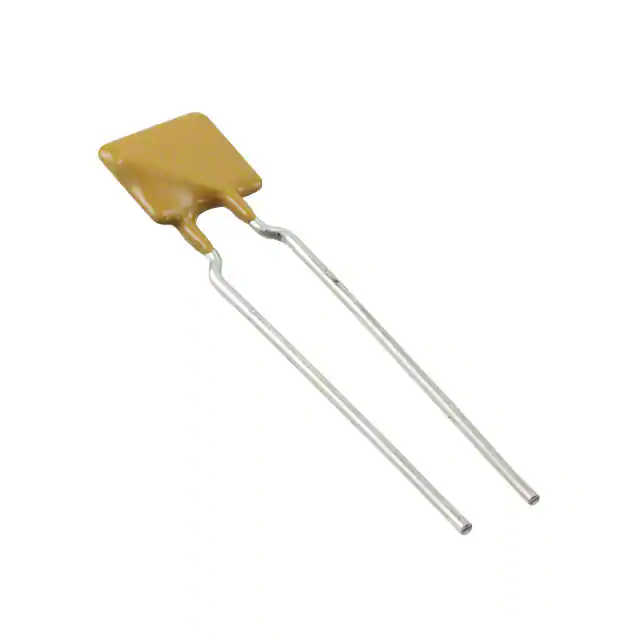

| Part Number | AGRF1200 | AGRF1400 | AGRF1000 | AGRF1100 |
|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active |
| Type | Polymeric | Polymeric | Polymeric | Polymeric |
| Voltage - Max | 16V | 16V | 16V | 16V |
| Current - Max | 100 A | 100 A | 100 A | 100 A |
| Current - Hold (Ih) (Max) | 12 A | 14 A | 10 A | 11 A |
| Current - Trip (It) | 22.1 A | 27.3 A | 18.5 A | 20.3 A |
| Time to Trip | 8 s | 9 s | 7 s | 7.5 s |
| Resistance - Initial (Ri) (Min) | 3 mOhms | 2.2 mOhms | 3.4 mOhms | 3.3 mOhms |
| Resistance - Post Trip (R1) (Max) | 8.6 mOhms | 6.4 mOhms | 10.2 mOhms | 8.9 mOhms |
| Resistance - 25°C (Typ) | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc |
| Size / Dimension | 0.689" L x 0.138" W (17.50mm x 3.50mm) | 0.925" L x 0.138" W (23.50mm x 3.50mm) | 0.650" L x 0.118" W (16.50mm x 3.00mm) | 0.689" L x 0.118" W (17.50mm x 3.00mm) |
| Height - Seated (Max) | 1.134" (28.80mm) | 1.130" (28.70mm) | 1.012" (25.70mm) | 1.043" (26.50mm) |
| Thickness (Max) | - | - | - | - |
| Lead Spacing | 0.400" (10.15mm) | 0.400" (10.15mm) | 0.199" (5.05mm) | 0.199" (5.05mm) |
