72R300XF
  • Share:

Littelfuse Inc. 72R300XF

Manufacturer No:
72R300XF
Manufacturer:
Littelfuse Inc.
Package:
Bulk
Datasheet:
72R300XF Datasheet
ECAD Model:
-
Description:

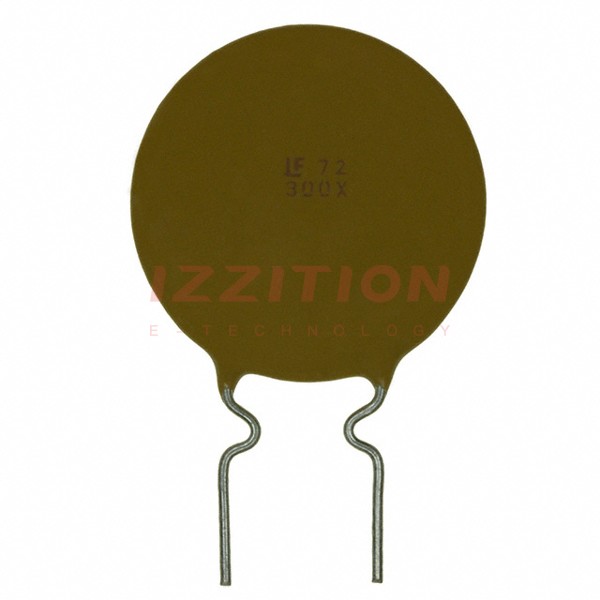

PTC RESET FUSE 72V 3A RADIAL
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Polymeric
Voltage - Max:72V
Current - Max:40 A
Current - Hold (Ih) (Max):3 A
Current - Trip (It):6 A
Time to Trip:19.8 s
Resistance - Initial (Ri) (Min):40 mOhms
Resistance - Post Trip (R1) (Max):100 mOhms
Resistance - 25°C (Typ):-
Operating Temperature:-40°C ~ 85°C
Ratings:-
Mounting Type:Through Hole
Package / Case:Radial, Disc
Size / Dimension:0.910" Dia x 0.122" T (23.11mm x 3.10mm)
Height - Seated (Max):1.154" (29.30mm)
Thickness (Max):-
Lead Spacing:0.402" (10.20mm)
0 Remaining View Similar

In Stock

-
575

Please send RFQ , we will respond immediately.
