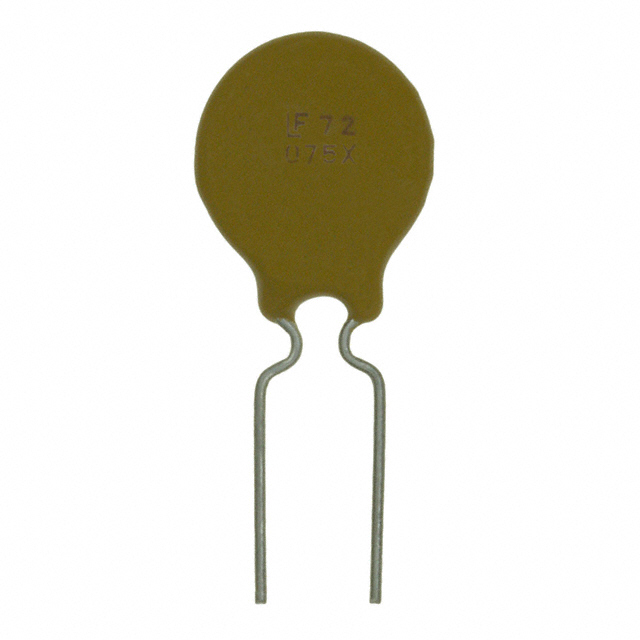

| Part Number | 72R075XU | 72R025XU | 72R065XU |
|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Obsolete | Obsolete | Obsolete |
| Type | Polymeric | Polymeric | Polymeric |
| Voltage - Max | 72V | 72V | 72V |
| Current - Max | 40 A | 40 A | 40 A |
| Current - Hold (Ih) (Max) | 750 mA | 250 mA | 650 mA |
| Current - Trip (It) | 1.5 A | 500 mA | 1.3 A |
| Time to Trip | 6.3 s | 2.5 s | 5.3 s |
| Resistance - Initial (Ri) (Min) | 250 mOhms | 1.25 Ohms | 310 mOhms |
| Resistance - Post Trip (R1) (Max) | 600 mOhms | 3 Ohms | 720 mOhms |
| Resistance - 25°C (Typ) | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Ratings | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Disc | Radial, Disc | Radial, Disc |
| Size / Dimension | 0.402" Dia x 0.122" T (10.20mm x 3.10mm) | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.370" Dia x 0.122" T (9.40mm x 3.10mm) |
| Height - Seated (Max) | 0.598" (15.20mm) | 0.500" (12.70mm) | 0.571" (14.50mm) |
| Thickness (Max) | - | - | - |
| Lead Spacing | 0.201" (5.10mm) | 0.201" (5.10mm) | 0.201" (5.10mm) |
