60R160XF
  • Share:

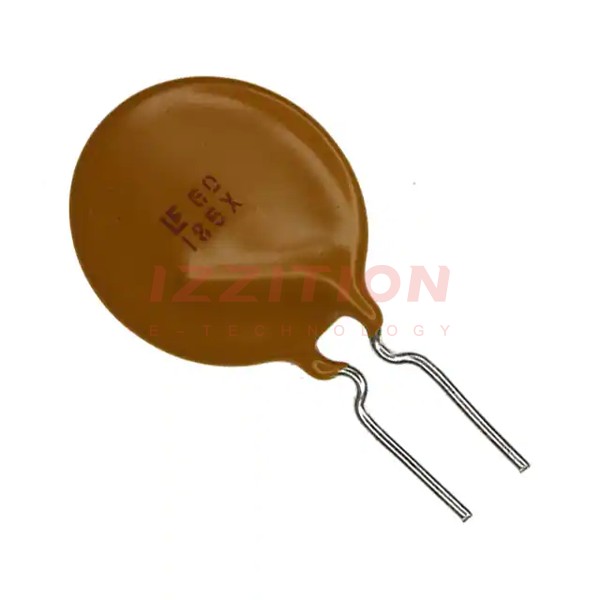

Littelfuse Inc. 60R160XF

Manufacturer No:
60R160XF
Manufacturer:
Littelfuse Inc.
Package:
Bulk
Datasheet:
60R160XF Datasheet
ECAD Model:
-
Description:
PTC RESET FUSE 60V 1.6A RADIAL
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Polymeric
Voltage - Max:60V
Current - Max:40 A
Current - Hold (Ih) (Max):1.6 A
Current - Trip (It):3.2 A
Time to Trip:11.4 s
Resistance - Initial (Ri) (Min):90 mOhms
Resistance - Post Trip (R1) (Max):220 mOhms
Resistance - 25°C (Typ):-
Operating Temperature:-40°C ~ 85°C
Ratings:-
Mounting Type:Through Hole
Package / Case:Radial, Disc
Size / Dimension:0.600" Dia x 0.122" T (15.24mm x 3.10mm)
Height - Seated (Max):0.850" (21.60mm)
Thickness (Max):-
Lead Spacing:0.201" (5.10mm)
0 Remaining View Similar

In Stock

$0.54
333

Please send RFQ , we will respond immediately.
