Please send RFQ , we will respond immediately.

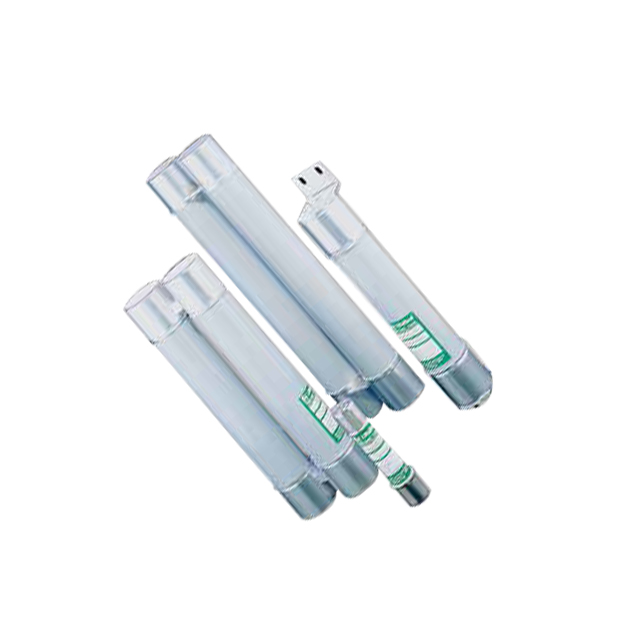

| Part Number | 5NLE50E | 5NLE80E | 5NLE10E | 5NLE150E | 5NLE20E | 5NLE30E | 5NLE40E |
|---|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Mounting Type | Holder | Holder | Holder | Holder | Holder | Holder | Holder |
| Fuse Type | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge |
| Current Rating (Amps) | 50A | 80A | 10A | 150A | 20A | 30A | 40A |
| Voltage Rating - AC | 5.5 kV | 5.5 kV | 15.5 kV | 5.5 kV | 5.5 kV | 5.5 kV | 5.5 kV |
| Voltage Rating - DC | - | - | - | - | - | - | - |
| Response Time | - | - | - | - | - | - | - |
| Applications | Transformer Protection | Transformer Protection | Transformer Protection | Transformer Protection | Transformer Protection | Transformer Protection | Transformer Protection |
| Features | Indicating | Indicating | Indicating | Indicating | Indicating | Indicating | Indicating |
| Class | E | E | E | E | E | E | E |
| Approval Agency | - | - | - | - | - | - | - |
| Operating Temperature | - | - | - | - | - | - | - |
| Breaking Capacity @ Rated Voltage | 80kA | 80kA | 60kA | 80kA | 80kA | 80kA | 80kA |
| Package / Case | Cartridge, Non-Standard | Cartridge, Non-Standard | Cartridge, Non-Standard | Cartridge, Non-Standard | Cartridge, Non-Standard | Cartridge, Non-Standard | Cartridge, Non-Standard |
| Size / Dimension | 3.000" Dia x 17.875" L (76.20mm x 454.03mm) | 3.000" Dia x 17.875" L (76.20mm x 454.03mm) | 3.000" Dia x 17.875" L (76.20mm x 454.03mm) | 3.000" Dia x 17.875" L (76.20mm x 454.03mm) | 3.000" Dia x 17.875" L (76.20mm x 454.03mm) | 3.000" Dia x 17.875" L (76.20mm x 454.03mm) | 3.000" Dia x 17.875" L (76.20mm x 454.03mm) |
