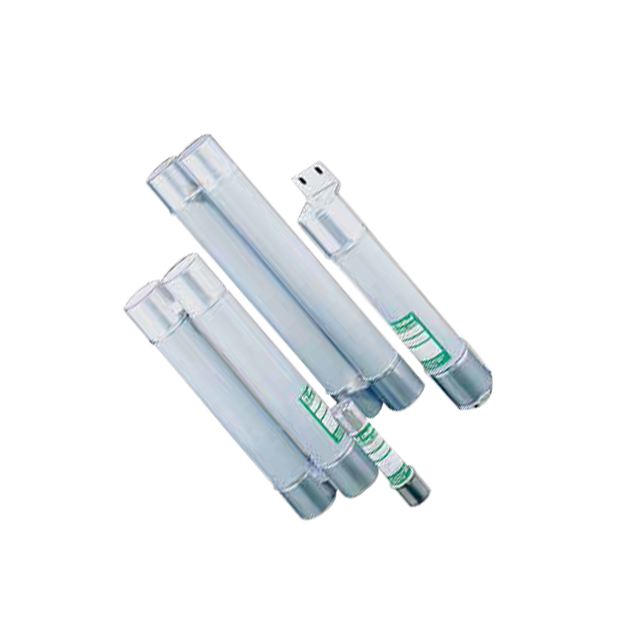

| Part Number | 5NLE2450E | 5NLE2250E | 5NLE2350E | 5NLE2400E |
|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active |
| Mounting Type | Holder | Holder | Holder | Holder |
| Fuse Type | Cartridge | Cartridge | Cartridge | Cartridge |
| Current Rating (Amps) | 450A | 250A | 350A | 400A |
| Voltage Rating - AC | 5.5 kV | 5.5 kV | 5.5 kV | 5.5 kV |
| Voltage Rating - DC | - | - | - | - |
| Response Time | - | - | - | - |
| Applications | Transformer Protection | Transformer Protection | Transformer Protection | Transformer Protection |
| Features | Indicating | Indicating | Indicating | Indicating |
| Class | E | E | E | E |
| Approval Agency | - | - | - | - |
| Operating Temperature | - | - | - | - |
| Breaking Capacity @ Rated Voltage | 80kA | 80kA | 80kA | 80kA |
| Package / Case | Cartridge, Non-Standard | Cartridge, Non-Standard | Cartridge, Non-Standard | Cartridge, Non-Standard |
| Size / Dimension | 17.875" L x 3.000" W x 6.380" H (454.03mm x 76.20mm x 162.05mm) | 17.875" L x 3.000" W x 6.380" H (454.03mm x 76.20mm x 162.05mm) | 17.875" L x 3.000" W x 6.380" H (454.03mm x 76.20mm x 162.05mm) | 17.875" L x 3.000" W x 6.380" H (454.03mm x 76.20mm x 162.05mm) |
