Please send RFQ , we will respond immediately.

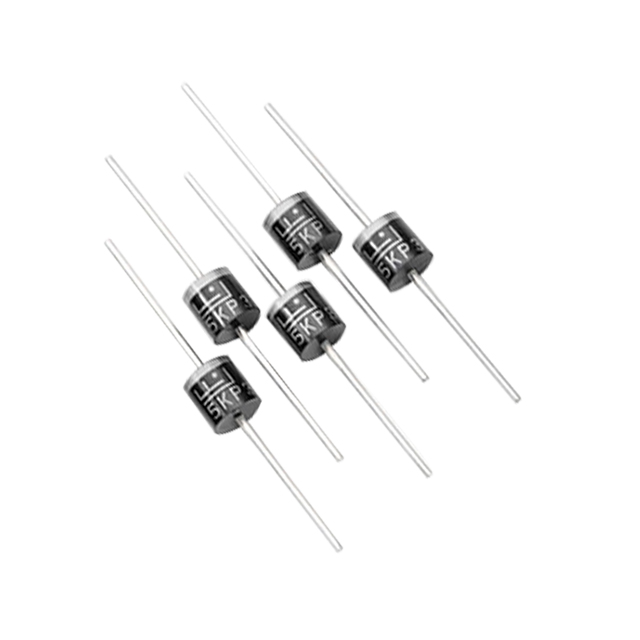

| Part Number | 5KP85A-HR | 5KP85A-HRA | 5KP85CA-HR | 5KP8.5A-HR |
|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | - | 1 |
| Bidirectional Channels | - | - | 1 | - |
| Voltage - Reverse Standoff (Typ) | 85V | 85V | 85V | 8.5V |
| Voltage - Breakdown (Min) | 94.4V | 94.4V | 94.4V | 9.44V |
| Voltage - Clamping (Max) @ Ipp | 137V | 137V | 137V | 14.4V |
| Current - Peak Pulse (10/1000µs) | 37.2A | 37.2A | 37.2A | 354.2A |
| Power - Peak Pulse | 5000W (5kW) | 5000W (5kW) | 5000W (5kW) | 5000W (5kW) |
| Power Line Protection | No | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - | - |
| Operating Temperature | -55°C ~ 175°C (TA) | -55°C ~ 175°C (TA) | -55°C ~ 175°C (TA) | -55°C ~ 175°C (TA) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | P600, Axial | P600, Axial | P600, Axial | P600, Axial |
| Supplier Device Package | P600 | P600 | P600 | P600 |
