Please send RFQ , we will respond immediately.

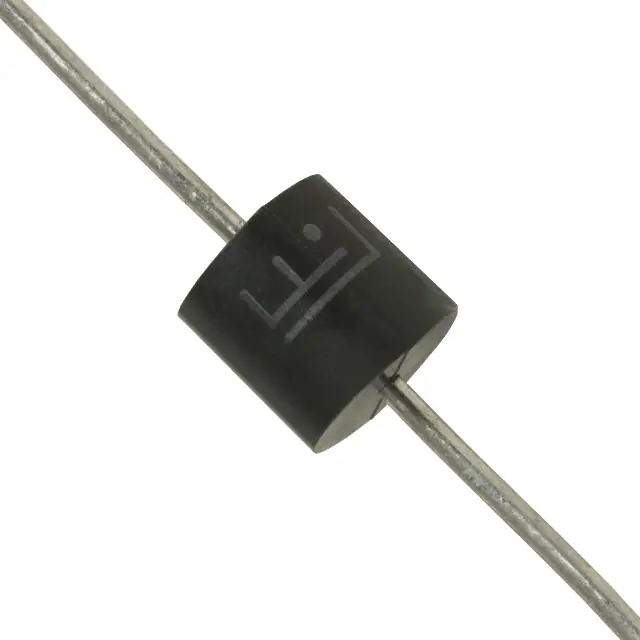

| Part Number | 5KP64-B | 5KP64A-B | 5KP64C-B | 5KP60-B |
|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Obsolete | Active | Obsolete | Obsolete |
| Type | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | - | 1 |
| Bidirectional Channels | - | - | 1 | - |
| Voltage - Reverse Standoff (Typ) | 64V | 64V | 64V | 60V |
| Voltage - Breakdown (Min) | 67.37V | 71.1V | 67.37V | 63.18V |
| Voltage - Clamping (Max) @ Ipp | 108.15V | 103V | 108.15V | 101.64V |
| Current - Peak Pulse (10/1000µs) | - | 49.5A | - | - |
| Power - Peak Pulse | 5000W (5kW) | 5000W (5kW) | 5000W (5kW) | 5000W (5kW) |
| Power Line Protection | No | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - | - |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | P600, Axial | P600, Axial | P600, Axial | P600, Axial |
| Supplier Device Package | P600 | P600 | P600 | P600 |
