| Part Number | 5KP13A-HRA | 5KP13CA-HRA | 5KP14A-HRA | 5KP15A-HRA | 5KP11A-HRA | 5KP12A-HRA | 5KP130A-HRA |
|---|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | - | 1 | 1 | 1 | 1 | 1 |
| Bidirectional Channels | - | 1 | - | - | - | - | - |
| Voltage - Reverse Standoff (Typ) | 13V | 13V | 14V | 15V | 11V | 12V | 130V |
| Voltage - Breakdown (Min) | 14.4V | 14.4V | 15.6V | 16.7V | 12.2V | 13.3V | 144V |
| Voltage - Clamping (Max) @ Ipp | 21.5V | 21.5V | 23.2V | 24.4V | 18.2V | 19.9V | 209V |
| Current - Peak Pulse (10/1000µs) | 237.2A | 237.2A | 219.8A | 209A | 280.2A | 256.3A | 24.4A |
| Power - Peak Pulse | 5000W (5kW) | 5000W (5kW) | 5000W (5kW) | 5000W (5kW) | 5000W (5kW) | 5000W (5kW) | 5000W (5kW) |
| Power Line Protection | No | No | No | No | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 175°C (TA) | -55°C ~ 175°C (TA) | -55°C ~ 175°C (TA) | -55°C ~ 175°C (TA) | -55°C ~ 175°C (TA) | -55°C ~ 175°C (TA) | -55°C ~ 175°C (TA) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |

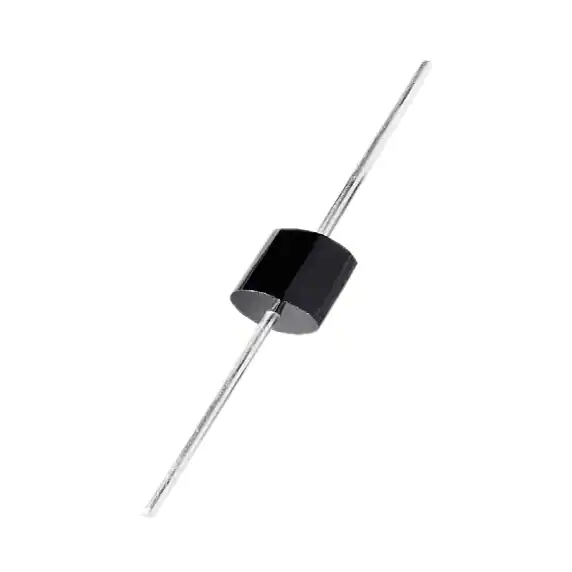

| Package / Case | P600, Axial | P600, Axial | P600, Axial | P600, Axial | P600, Axial | P600, Axial | P600, Axial |
| Supplier Device Package | P600 | P600 | P600 | P600 | P600 | P600 | P600 |
