Littelfuse Inc.-56300-01 - Rocker Switches Product Specifications and Latest Quotes

Mounting Type:	Panel Mount, Snap-In
Circuit:	SPST
Switch Function:	On-Off
Current Rating (Amps):	25A (DC)
Voltage Rating - AC:	-
Voltage Rating - DC:	12 V
Actuator Type:	Concave (Curved) - Illuminated
Color - Actuator/Cap:	White
Actuator Marking:	No Marking
Illumination Type, Color:	Incandescent, Red
Illumination Voltage (Nominal):	12 VDC
Termination Style:	Screw Terminal
Ingress Protection:	-
Features:	-
Panel Cutout Dimensions:	Rectangular - 36.83mm x 21.08mm
Operating Temperature:	-

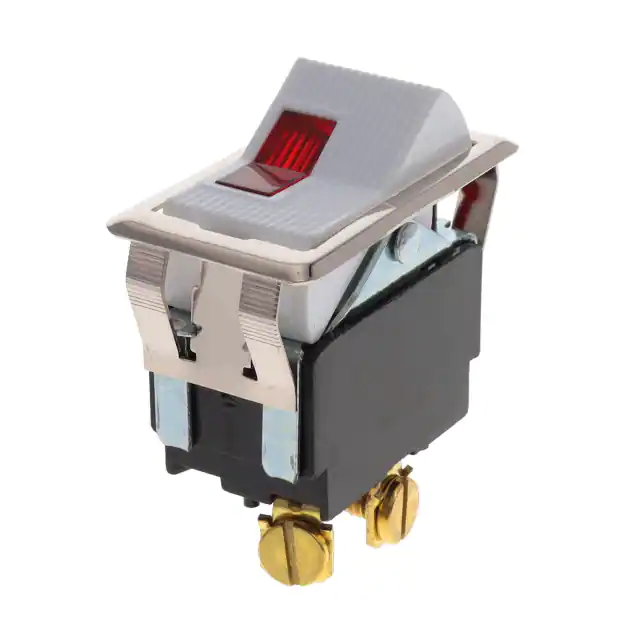

Littelfuse Inc. 56300-01
