Littelfuse Inc.-5582-10 - Toggle Switches Product Specifications and Latest Quotes

Mounting Type:	Panel Mount
Circuit:	SPST
Switch Function:	On-Off
Current Rating (Amps):	25A (DC)
Voltage Rating - AC:	-
Voltage Rating - DC:	12 V
Actuator Type:	Standard Round
Actuator Length:	17.46mm
Illumination:	Non-Illuminated
Illumination Type, Color:	-
Illumination Voltage (Nominal):	-
Termination Style:	Wire Leads
Panel Cutout Dimensions:	Circular - 11.90mm Dia
Bushing Thread:	15/32-32
Ingress Protection:	-
Features:	-
Operating Temperature:	-

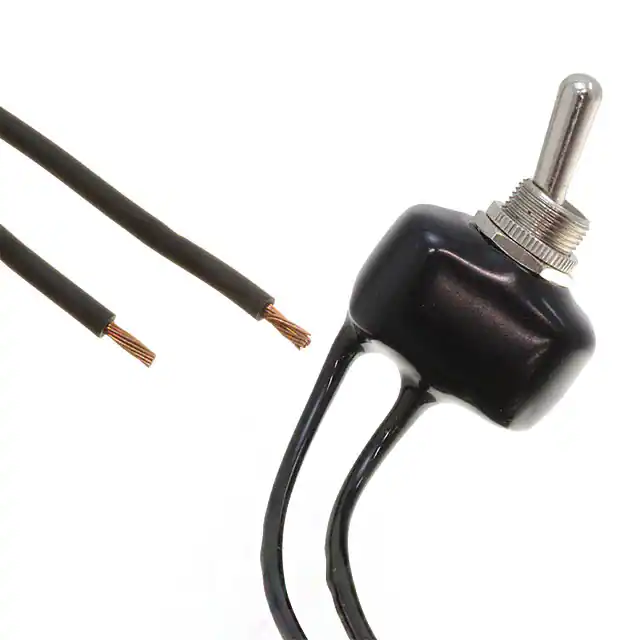

Littelfuse Inc. 5582-10
