Littelfuse Inc.-39516300000 - Fuses Product Specifications and Latest Quotes

Mounting Type:	Through Hole
Fuse Type:	Board Mount (Cartridge Style Excluded)
Current Rating (Amps):	6.3 A
Voltage Rating - AC:	125 V
Voltage Rating - DC:	-
Response Time:	Fast Blow
Package / Case:	Radial, Box
Breaking Capacity @ Rated Voltage:	100A
Melting I²t:	9.7
Approval Agency:	cUL, UL
Operating Temperature:	-40°C ~ 85°C
Color:	-
Size / Dimension:	0.335" L x 0.157" W x 0.315" H (8.50mm x 4.00mm x 8.00mm)

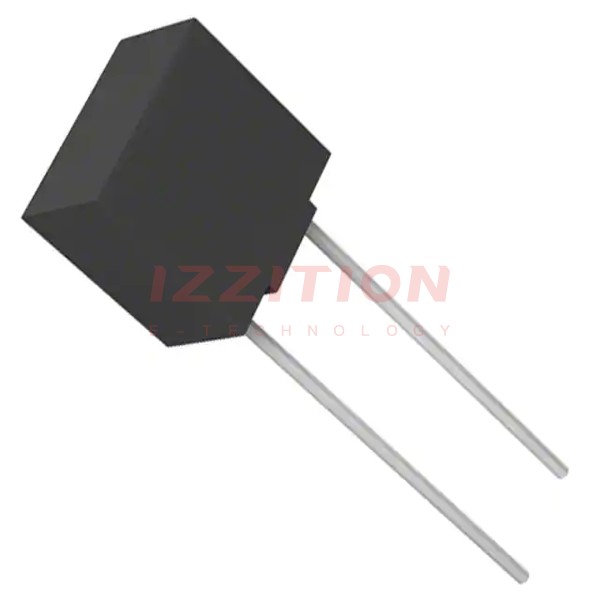

Littelfuse Inc. 39516300000
