Please send RFQ , we will respond immediately.

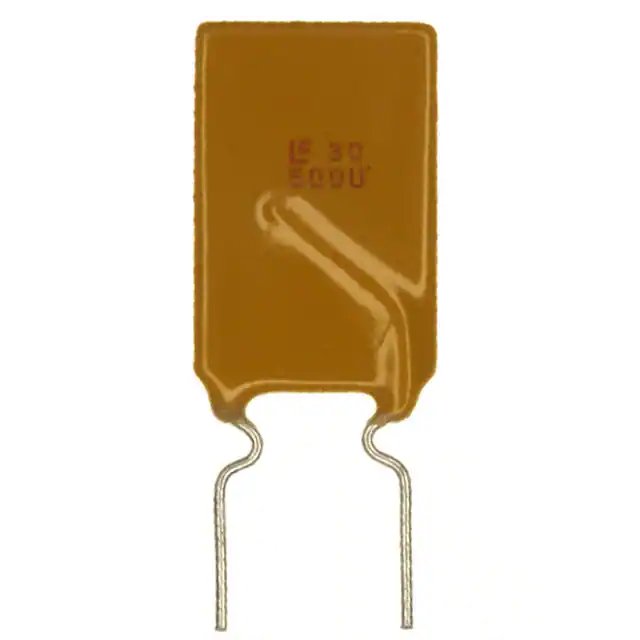

| Part Number | 30R500UF | 30R600UF | 30R700UF | 30R400UF | 30R500U |
|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Obsolete | Active | Obsolete |
| Type | Polymeric | Polymeric | Polymeric | Polymeric | Polymeric |
| Voltage - Max | 30V | 30V | 30V | 30V | 30V |
| Current - Max | 40 A | 40 A | 40 A | 40 A | 40 A |
| Current - Hold (Ih) (Max) | 5 A | 6 A | 7 A | 4 A | 5 A |
| Current - Trip (It) | 10 A | 12 A | 14 A | 8 A | 10 A |
| Time to Trip | 14.5 s | 16 s | 17.5 s | 12.7 s | 14.5 s |
| Resistance - Initial (Ri) (Min) | 10 mOhms | 5 mOhms | 5 mOhms | 10 mOhms | 10 mOhms |
| Resistance - Post Trip (R1) (Max) | 50 mOhms | 40 mOhms | 30 mOhms | 50 mOhms | 50 mOhms |
| Resistance - 25°C (Typ) | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Ratings | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc |
| Size / Dimension | 0.551" L x 0.118" W (14.00mm x 3.00mm) | 0.650" L x 0.118" W (16.50mm x 3.00mm) | 0.752" L x 0.118" W (19.10mm x 3.00mm) | 0.551" L x 0.118" W (14.00mm x 3.00mm) | 0.551" L x 0.118" W (14.00mm x 3.00mm) |
| Height - Seated (Max) | 1.008" (25.60mm) | 1.055" (26.80mm) | 1.126" (28.60mm) | 0.866" (22.00mm) | 1.008" (25.60mm) |
| Thickness (Max) | - | - | - | - | - |
| Lead Spacing | 0.402" (10.20mm) | 0.402" (10.20mm) | 0.402" (10.20mm) | 0.201" (5.10mm) | 0.402" (10.20mm) |
