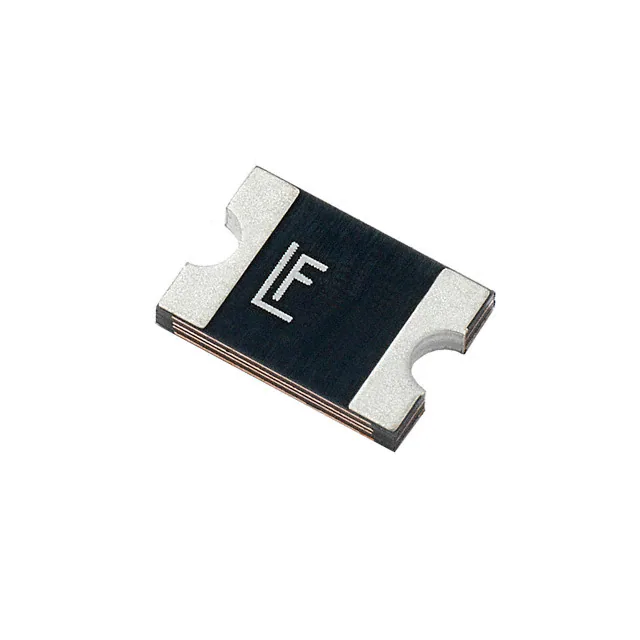

| Part Number | 2920L500/16MR-A | 2920L600/16MR-A |
|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active |
| Type | Polymeric | Polymeric |
| Voltage - Max | 16V | 16V |
| Current - Max | 40 A | 40 A |
| Current - Hold (Ih) (Max) | 5 A | 6 A |
| Current - Trip (It) | 10 A | 12 A |
| Time to Trip | 5 s | 2 s |
| Resistance - Initial (Ri) (Min) | 5 mOhms | 4 mOhms |
| Resistance - Post Trip (R1) (Max) | 25 mOhms | 20 mOhms |
| Resistance - 25°C (Typ) | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Ratings | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 2920 (7351 Metric), Concave | 2920 (7351 Metric), Concave |
| Size / Dimension | 0.290" L x 0.202" W (7.36mm x 5.12mm) | 0.290" L x 0.202" W (7.36mm x 5.12mm) |
| Height - Seated (Max) | - | - |
| Thickness (Max) | 0.063" (1.60mm) | 0.063" (1.60mm) |
| Lead Spacing | - | - |
