2920L300/15DR
  • Share:

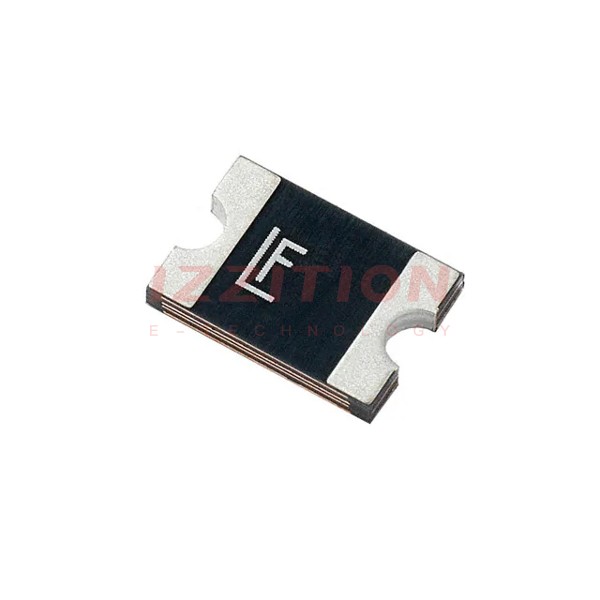

Littelfuse Inc. 2920L300/15DR

Manufacturer No:
2920L300/15DR
Manufacturer:
Littelfuse Inc.
Package:
Tape & Reel (TR)
Datasheet:
2920L300/15DR Datasheet
ECAD Model:
-
Description:
PTC RESET FUSE 15V 3A 2920
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Polymeric
Voltage - Max:15V
Current - Max:40 A
Current - Hold (Ih) (Max):3 A
Current - Trip (It):5 A
Time to Trip:20 s
Resistance - Initial (Ri) (Min):15 mOhms
Resistance - Post Trip (R1) (Max):48 mOhms
Resistance - 25°C (Typ):-
Operating Temperature:-40°C ~ 85°C
Ratings:-
Mounting Type:Surface Mount
Package / Case:2920 (7351 Metric), Concave
Size / Dimension:0.289" L x 0.202" W (7.35mm x 5.12mm)
Height - Seated (Max):-
Thickness (Max):0.049" (1.25mm)
Lead Spacing:-
0 Remaining View Similar

In Stock

$0.82
287

Please send RFQ , we will respond immediately.
