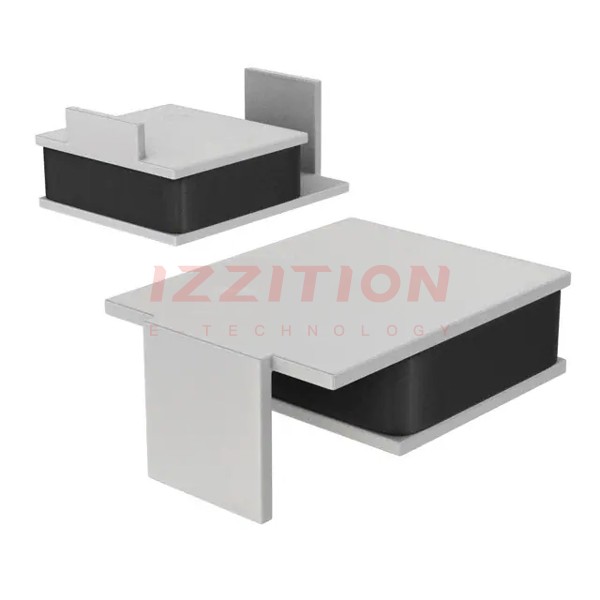

| Part Number | 250S130-RCDR | 250S130-RADR | 250S130-RBDR |
|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Obsolete | Active | Active |
| Type | Polymeric | Polymeric | Polymeric |
| Voltage - Max | 60V (250V Int) | 60V (250V Int) | 60V (250V Int) |
| Current - Max | 3 A | 3 A | 3 A |
| Current - Hold (Ih) (Max) | 130 mA | 130 mA | 130 mA |
| Current - Trip (It) | 260 mA | 260 mA | 260 mA |
| Time to Trip | 1.1 s | 1.4 s | 700 ms |
| Resistance - Initial (Ri) (Min) | 7 Ohms | 6.5 Ohms | 9 Ohms |
| Resistance - Post Trip (R1) (Max) | 17 Ohms | 15 Ohms | 20 Ohms |
| Resistance - 25°C (Typ) | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Ratings | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2-SMD | 2-SMD | 2-SMD |
| Size / Dimension | 0.370" L x 0.291" W (9.40mm x 7.40mm) | 0.370" L x 0.291" W (9.40mm x 7.40mm) | 0.370" L x 0.291" W (9.40mm x 7.40mm) |
| Height - Seated (Max) | - | - | - |
| Thickness (Max) | 0.146" (3.70mm) | 0.146" (3.70mm) | 0.146" (3.70mm) |
| Lead Spacing | - | - | - |
