20LR600SU
  • Share:

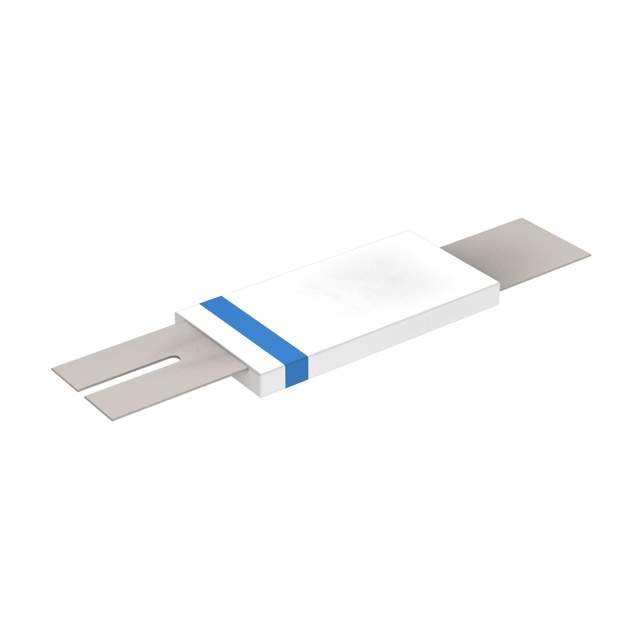

Littelfuse Inc. 20LR600SU

Manufacturer No:
20LR600SU
Manufacturer:
Littelfuse Inc.
Package:
Bulk
Datasheet:
20LR600SU Datasheet
ECAD Model:
-
Description:
PTC RESET FUSE 20V 6A STRAP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Polymeric
Voltage - Max:20V
Current - Max:100 A
Current - Hold (Ih) (Max):6 A
Current - Trip (It):11.7 A
Time to Trip:5 s
Resistance - Initial (Ri) (Min):7 mOhms
Resistance - Post Trip (R1) (Max):19 mOhms
Resistance - 25°C (Typ):-
Operating Temperature:-40°C ~ 85°C
Ratings:-
Mounting Type:User Defined
Package / Case:Strap
Size / Dimension:0.984" L x 0.559" W (25.00mm x 14.20mm)
Height - Seated (Max):-
Thickness (Max):0.039" (1.00mm)
Lead Spacing:-
0 Remaining View Similar

In Stock

-
598

Please send RFQ , we will respond immediately.
