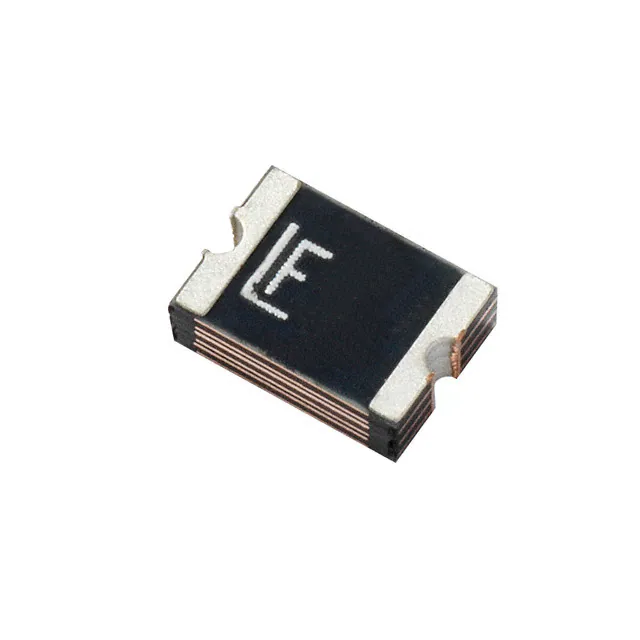

| Part Number | 1812L160/12DR | 1812L150/12DR |
|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active |
| Type | Polymeric | Polymeric |
| Voltage - Max | 12V | 12V |
| Current - Max | 100 A | 100 A |
| Current - Hold (Ih) (Max) | 1.6 A | 1.5 A |
| Current - Trip (It) | 2.8 A | 3 A |
| Time to Trip | 1 s | 500 ms |
| Resistance - Initial (Ri) (Min) | 30 mOhms | 40 mOhms |
| Resistance - Post Trip (R1) (Max) | 100 mOhms | 110 mOhms |
| Resistance - 25°C (Typ) | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Ratings | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 1812 (4532 Metric), Concave | 1812 (4532 Metric), Concave |
| Size / Dimension | 0.179" L x 0.128" W (4.55mm x 3.24mm) | 0.179" L x 0.128" W (4.55mm x 3.24mm) |
| Height - Seated (Max) | - | - |
| Thickness (Max) | 0.049" (1.25mm) | 0.049" (1.25mm) |
| Lead Spacing | - | - |
