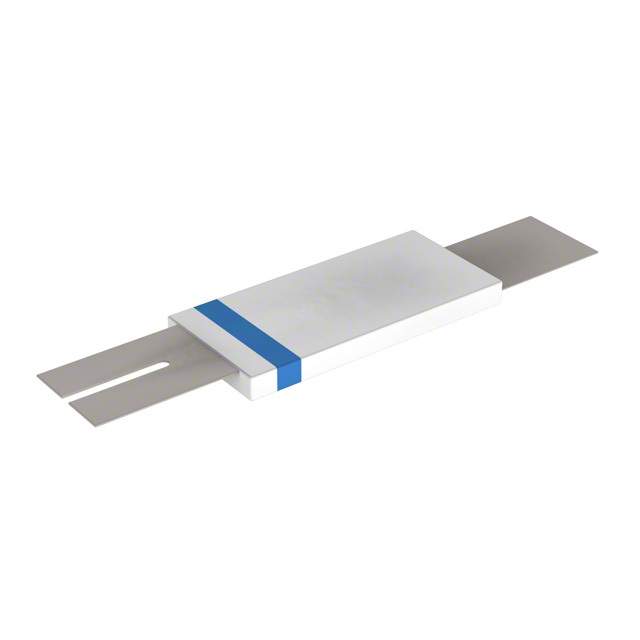

| Part Number | 16VT200SU | 16VT210SU | 16VT200U |
|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Obsolete | Obsolete | Obsolete |
| Type | Polymeric | Polymeric | Polymeric |
| Voltage - Max | 16V | 16V | 16V |
| Current - Max | 100 A | 100 A | 100 A |
| Current - Hold (Ih) (Max) | 2 A | 2.1 A | 2 A |
| Current - Trip (It) | 4.5 A | 4.7 A | 4.5 A |
| Time to Trip | 4 s | 5 s | 4 s |
| Resistance - Initial (Ri) (Min) | 21 mOhms | 18 mOhms | 21 mOhms |
| Resistance - Post Trip (R1) (Max) | 80 mOhms | 60 mOhms | 80 mOhms |
| Resistance - 25°C (Typ) | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Ratings | - | - | - |
| Mounting Type | User Defined | User Defined | User Defined |
| Package / Case | Strap | Strap | Strap |
| Size / Dimension | 0.866" L x 0.159" W (22.00mm x 4.05mm) | 0.866" L x 0.201" W (22.00mm x 5.10mm) | 0.866" L x 0.159" W (22.00mm x 4.05mm) |
| Height - Seated (Max) | - | - | - |
| Thickness (Max) | 0.028" (0.70mm) | 0.032" (0.80mm) | 0.028" (0.70mm) |
| Lead Spacing | - | - | - |
