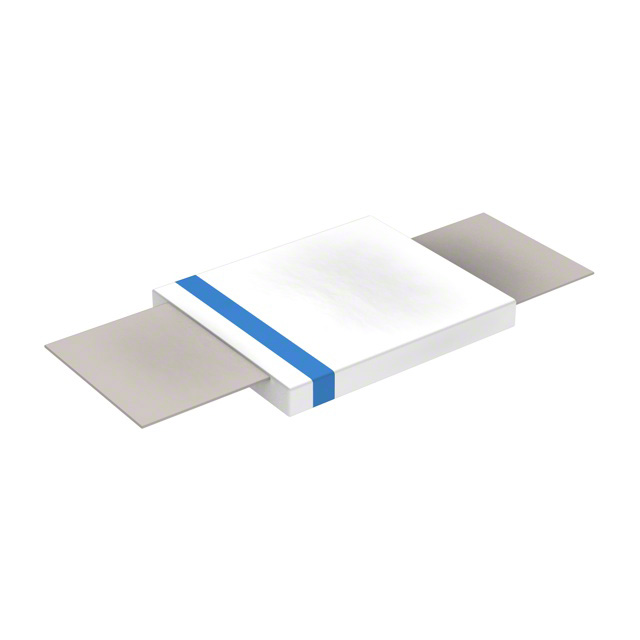

| Part Number | 16VT175LU | 16VT175SU | 16VT175U | 16VT175XLU | 16VT175ELU |
|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Polymeric | Polymeric | Polymeric | Polymeric | Polymeric |
| Voltage - Max | 16V | 16V | 16V | 16V | 16V |
| Current - Max | 100 A | 100 A | 100 A | 100 A | 100 A |
| Current - Hold (Ih) (Max) | 1.75 A | 1.75 A | 1.75 A | 1.75 A | 1.75 A |
| Current - Trip (It) | 3.8 A | 3.8 A | 3.8 A | 3.8 A | 3.6 A |
| Time to Trip | 3 s | 3 s | 3 s | 5 s | 5 s |
| Resistance - Initial (Ri) (Min) | 25 mOhms | 25 mOhms | 25 mOhms | 29 mOhms | 29 mOhms |
| Resistance - Post Trip (R1) (Max) | 90 mOhms | 90 mOhms | 90 mOhms | 102 mOhms | 102 mOhms |
| Resistance - 25°C (Typ) | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Ratings | - | - | - | - | - |
| Mounting Type | User Defined | User Defined | User Defined | User Defined | User Defined |
| Package / Case | Strap | Strap | Strap | Strap | Strap |
| Size / Dimension | 1.063" L x 0.144" W (27.00mm x 3.65mm) | 0.848" L x 0.144" W (21.55mm x 3.65mm) | 0.848" L x 0.144" W (21.55mm x 3.65mm) | 1.057" L x 0.146" W (26.85mm x 3.70mm) | 1.575" L x 0.146" W (40.00mm x 3.70mm) |
| Height - Seated (Max) | - | - | - | - | - |
| Thickness (Max) | 0.032" (0.80mm) | 0.032" (0.80mm) | 0.032" (0.80mm) | - | 0.032" (0.80mm) |
| Lead Spacing | - | - | - | - | - |
