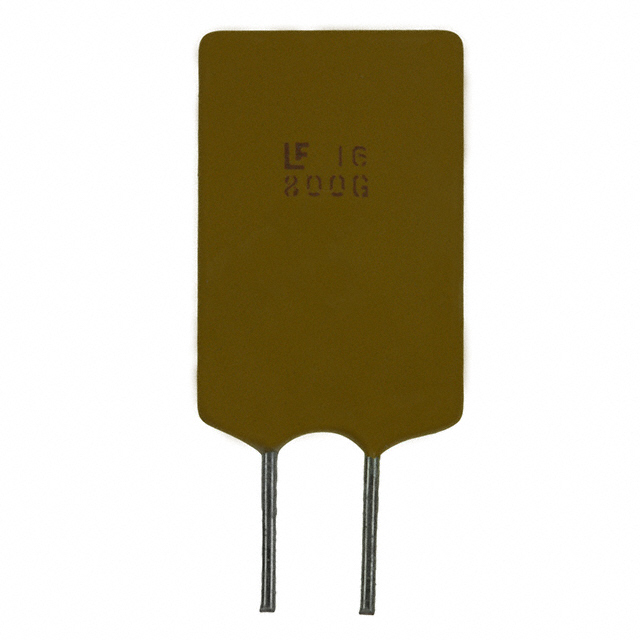

| Part Number | 16R800GF | 16R900GF | 16R700GF |
|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Obsolete |
| Type | Polymeric | Polymeric | Polymeric |
| Voltage - Max | 16V | 16V | 16V |
| Current - Max | 100 A | 100 A | 100 A |
| Current - Hold (Ih) (Max) | 8 A | 9 A | 7 A |
| Current - Trip (It) | 13.6 A | 15.3 A | 11.9 A |
| Time to Trip | 5 s | 5.5 s | 3.5 s |
| Resistance - Initial (Ri) (Min) | 5.6 mOhms | 4.7 mOhms | 7.7 mOhms |
| Resistance - Post Trip (R1) (Max) | 17.5 mOhms | 13.5 mOhms | 20 mOhms |
| Resistance - 25°C (Typ) | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Ratings | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Disc | Radial, Disc | Radial, Disc |
| Size / Dimension | 0.500" L x 0.118" W (12.70mm x 3.00mm) | 0.551" L x 0.118" W (14.00mm x 3.00mm) | 0.441" L x 0.118" W (11.20mm x 3.00mm) |
| Height - Seated (Max) | 0.823" (20.90mm) | 0.854" (21.70mm) | 0.776" (19.70mm) |
| Thickness (Max) | - | - | - |
| Lead Spacing | 0.201" (5.10mm) | 0.201" (5.10mm) | 0.201" (5.10mm) |
