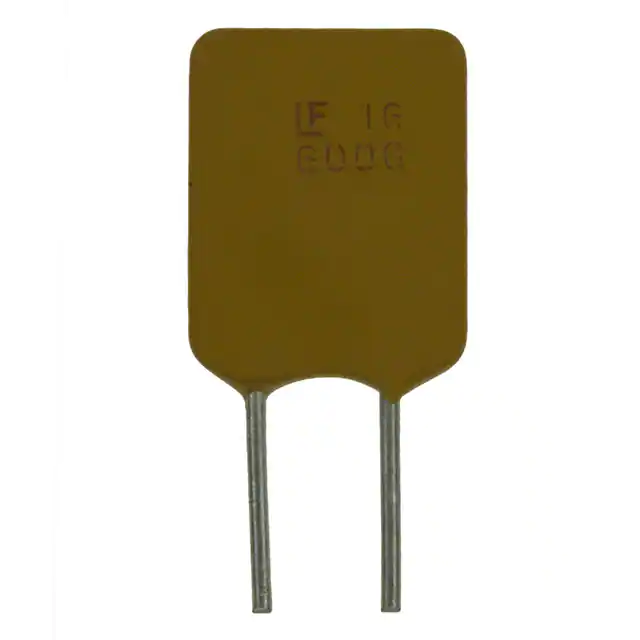

| Part Number | 16R600GU | 16R300GU | 16R400GU | 16R500GU |
|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Obsolete | Active | Active | Active |
| Type | Polymeric | Polymeric | Polymeric | Polymeric |
| Voltage - Max | 16V | 16V | 16V | 16V |
| Current - Max | 100 A | 100 A | 100 A | 100 A |
| Current - Hold (Ih) (Max) | 6 A | 3 A | 4 A | 5 A |
| Current - Trip (It) | 10.2 A | 5.1 A | 6.8 A | 8.5 A |
| Time to Trip | 3.3 s | 1 s | 1.7 s | 2 s |
| Resistance - Initial (Ri) (Min) | 10 mOhms | 38 mOhms | 21 mOhms | 15 mOhms |
| Resistance - Post Trip (R1) (Max) | 28 mOhms | 97.5 mOhms | 60 mOhms | 34 mOhms |
| Resistance - 25°C (Typ) | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Ratings | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc |
| Size / Dimension | 0.421" L x 0.118" W (10.70mm x 3.00mm) | 0.280" L x 0.118" W (7.10mm x 3.00mm) | 0.350" L x 0.118" W (8.90mm x 3.00mm) | 0.409" L x 0.118" W (10.40mm x 3.00mm) |
| Height - Seated (Max) | 0.673" (17.10mm) | 0.433" (11.00mm) | 0.504" (12.80mm) | 0.563" (14.30mm) |
| Thickness (Max) | - | - | - | - |
| Lead Spacing | 0.201" (5.10mm) | 0.201" (5.10mm) | 0.201" (5.10mm) | 0.201" (5.10mm) |
