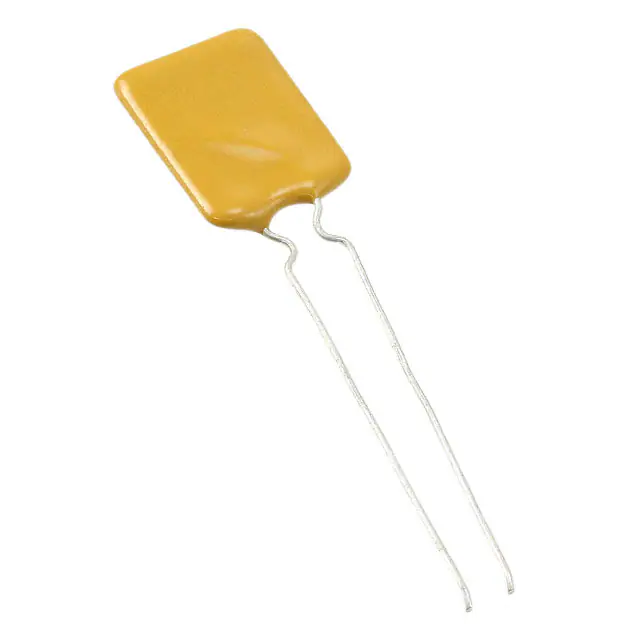

| Part Number | 16R250BPR | 16R250GPR |
|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Obsolete | Obsolete |
| Type | Polymeric | Polymeric |
| Voltage - Max | 16V | 16V |
| Current - Max | 40 A | 100 A |
| Current - Hold (Ih) (Max) | 2.5 A | 2.5 A |
| Current - Trip (It) | 5 A | 4.7 A |
| Time to Trip | 40 s | 5 s |
| Resistance - Initial (Ri) (Min) | 20 mOhms | 22 mOhms |
| Resistance - Post Trip (R1) (Max) | 60 mOhms | 53 mOhms |
| Resistance - 25°C (Typ) | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Ratings | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Disc | Radial, Disc |
| Size / Dimension | 0.449" L x 0.118" W (11.40mm x 3.00mm) | 0.350" L x 0.118" W (8.90mm x 3.00mm) |
| Height - Seated (Max) | 0.720" (18.30mm) | 0.504" (12.80mm) |
| Thickness (Max) | - | - |
| Lead Spacing | 0.201" (5.10mm) | 0.201" (5.10mm) |
