Please send RFQ , we will respond immediately.

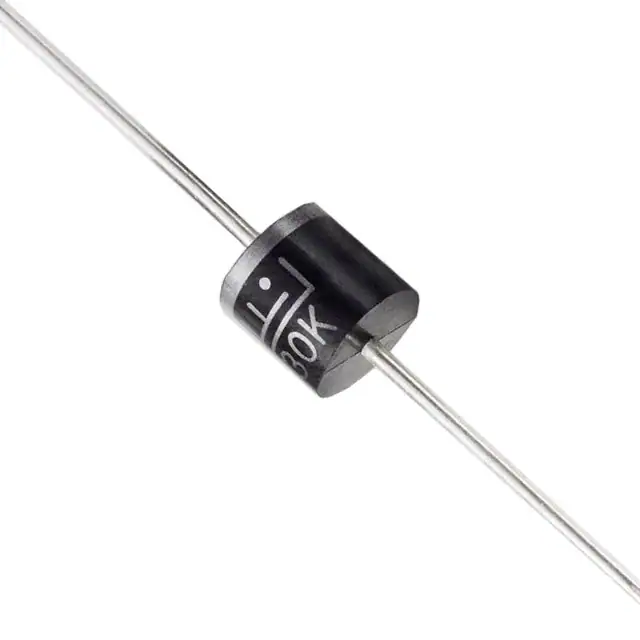

| Part Number | 15KPA70 | 15KPA70A | 15KPA70C | 15KPA75 | 15KPA78 | 15KPA90 | 15KPA40 | 15KPA60 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | MDE Semiconductor Inc | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | - | 1 | 1 | 1 | 1 | 1 |
| Bidirectional Channels | - | - | 1 | - | - | - | - | - |
| Voltage - Reverse Standoff (Typ) | 70V | 70V | 70V | 75V | 78V | 90V | 40V | 60V |
| Voltage - Breakdown (Min) | 73.71V | 78.2V | 73.71V | 78.98V | 82.13V | 94.77V | 42.12V | 63.18V |
| Voltage - Clamping (Max) @ Ipp | 119.28V | 113.6V | 119.28V | 128.1V | 132.41V | 152.88V | 69.09V | 102.27V |
| Current - Peak Pulse (10/1000µs) | 132.9A | 132.9A | 132.9A | 123.8A | 119.7A | 103.7A | 229.5A | 155A |
| Power - Peak Pulse | 15000W (15kW) | 15000W (15kW) | 15000W (15kW) | 15000W (15kW) | 15000W (15kW) | 15000W (15kW) | 15000W (15kW) | 15000W (15kW) |
| Power Line Protection | No | No | No | No | No | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | P600, Axial | P600, Axial | P600, Axial | P600, Axial | P600, Axial | P600, Axial | P600, Axial | P600, Axial |
| Supplier Device Package | P600 | P600 | P600 | P600 | P600 | P600 | P600 | P600 |
