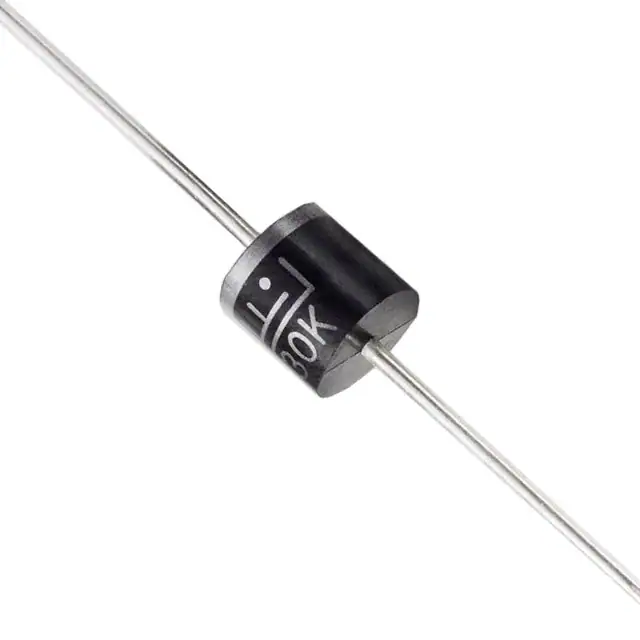

| Part Number | 15KPA30 | 15KPA30A | 15KPA30C | 15KPA33 | 15KPA36 | 15KPA40 | 15KPA60 | 15KPA20 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | - | 1 | 1 | 1 | 1 | 1 |
| Bidirectional Channels | - | - | 1 | - | - | - | - | - |
| Voltage - Reverse Standoff (Typ) | 30V | 30V | 30V | 33V | 36V | 40V | 60V | 20V |
| Voltage - Breakdown (Min) | 31.59V | 33.51V | 31.59V | 34.79V | 37.89V | 42.12V | 63.18V | 21.06V |
| Voltage - Clamping (Max) @ Ipp | 53.24V | 50.7V | 53.24V | 57.44V | 62.79V | 69.09V | 102.27V | 36.02V |
| Current - Peak Pulse (10/1000µs) | 297.8A | 297.8A | 297.8A | 276.1A | 252.5A | 229.5A | 155A | 440.2A |
| Power - Peak Pulse | 15000W (15kW) | 15000W (15kW) | 15000W (15kW) | 15000W (15kW) | 15000W (15kW) | 15000W (15kW) | 15000W (15kW) | 15000W (15kW) |
| Power Line Protection | No | No | No | No | No | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | P600, Axial | P600, Axial | P600, Axial | P600, Axial | P600, Axial | P600, Axial | P600, Axial | P600, Axial |
| Supplier Device Package | P600 | P600 | P600 | P600 | P600 | P600 | P600 | P600 |
