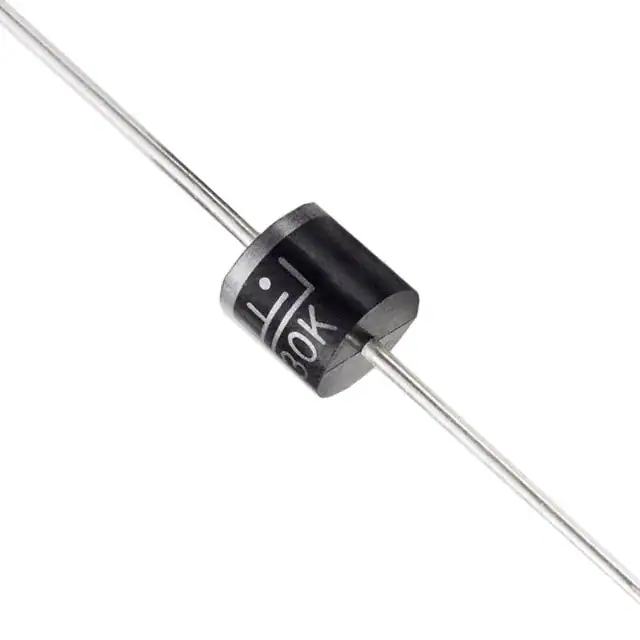

| Part Number | 15KP200 | 15KP200A | 15KP200C | 15KP20C | 15KP220 | 15KP240 | 15KP260 | 15KP280 | 15KP100 | 15KP20 |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | MDE Semiconductor Inc | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | - | - | 1 | 1 | 1 | 1 | 1 | 1 |
| Bidirectional Channels | - | - | 1 | 1 | - | - | - | - | - | - |
| Voltage - Reverse Standoff (Typ) | 200V | 200V | 200V | 20V | 220V | 240V | 260V | 280V | 100V | 20V |
| Voltage - Breakdown (Min) | 209.79V | 223.4V | 209.79V | 20.98V | 231.53V | 252.32V | 273.11V | 293.9V | 104.9V | 20.98V |
| Voltage - Clamping (Max) @ Ipp | 338.1V | 319.1V | 338.1V | 36.02V | 373.8V | 407.4V | 439.95V | 474.6V | 170.1V | 36.02V |
| Current - Peak Pulse (10/1000µs) | - | 47.3A | - | - | - | - | - | - | - | - |
| Power - Peak Pulse | 15000W (15kW) | 15000W (15kW) | 15000W (15kW) | 15000W (15kW) | 15000W (15kW) | 15000W (15kW) | 15000W (15kW) | 15000W (15kW) | 15000W (15kW) | 15000W (15kW) |
| Power Line Protection | No | No | No | No | No | No | No | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | P600, Axial | P600, Axial | P600, Axial | P600, Axial | P600, Axial | P600, Axial | P600, Axial | P600, Axial | P600, Axial | P600, Axial |
| Supplier Device Package | P600 | P600 | P600 | P600 | P600 | P600 | P600 | P600 | P600 | P600 |
