| Part Number | 15KP17 | 15KP17A | 15KP170 | 15KP17C | 15KP18 |
|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | MDE Semiconductor Inc | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete |
| Type | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | 1 | - | 1 |
| Bidirectional Channels | - | - | - | 1 | - |
| Voltage - Reverse Standoff (Typ) | 17V | 17V | 170V | 17V | 18V |
| Voltage - Breakdown (Min) | 17.86V | 18.99V | 178.61V | 17.86V | 18.9V |
| Voltage - Clamping (Max) @ Ipp | 30.77V | 29.3V | 288.75V | 30.77V | 32.45V |
| Current - Peak Pulse (10/1000µs) | - | 515.4A | - | - | - |
| Power - Peak Pulse | 15000W (15kW) | 15000W (15kW) | 15000W (15kW) | 15000W (15kW) | 15000W (15kW) |
| Power Line Protection | No | No | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - | - | - |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |

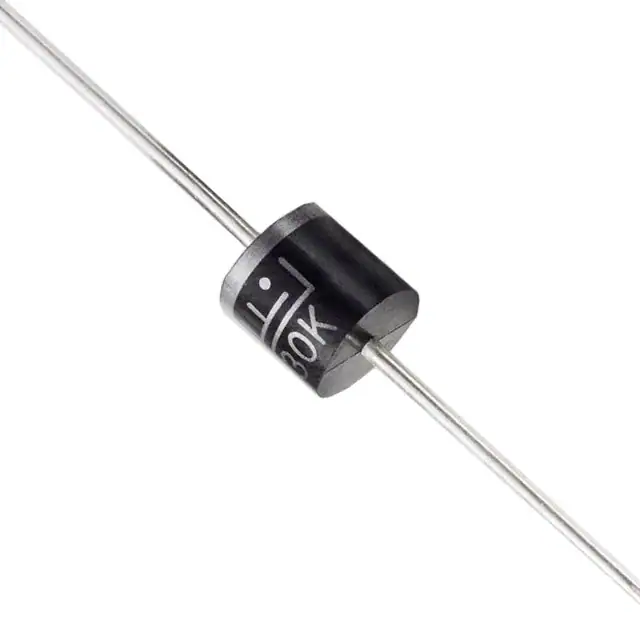

| Package / Case | P600, Axial | P600, Axial | P600, Axial | P600, Axial | P600, Axial |
| Supplier Device Package | P600 | P600 | P600 | P600 | P600 |
