Please send RFQ , we will respond immediately.

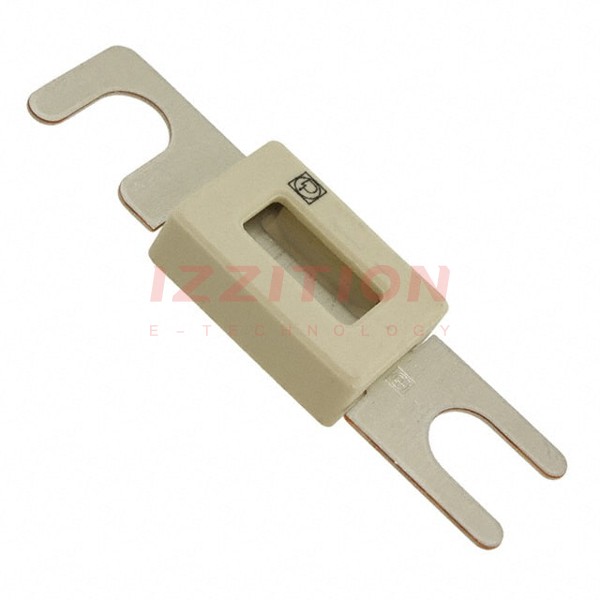

| Part Number | 157.5701.6421 | 157.5701.6121 | 157.5701.6401 |
|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active |
| Mounting Type | Bolt Mount | Bolt Mount | Bolt Mount |
| Fuse Type | Fuse Strip | Fuse Strip | Fuse Strip |
| Current Rating (Amps) | 425A | 125A | 400A |
| Voltage Rating - AC | - | - | - |
| Voltage Rating - DC | 48 V | 48 V | 48 V |
| Response Time | - | - | - |
| Applications | Lift Trucks | Lift Trucks | Lift Trucks |
| Features | Indicating | Indicating | Indicating |
| Class | - | - | - |
| Approval Agency | cURus | cURus | cURus |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Breaking Capacity @ Rated Voltage | 2.55kA | 750A | 2.4kA |
| Package / Case | Metal Strip | Metal Strip | Metal Strip |
| Size / Dimension | 3.228" L x 0.866" W x 0.413" H (82.00mm x 22.00mm x 10.50mm) | 3.228" L x 0.866" W x 0.413" H (82.00mm x 22.00mm x 10.50mm) | 3.228" L x 0.866" W x 0.413" H (82.00mm x 22.00mm x 10.50mm) |
