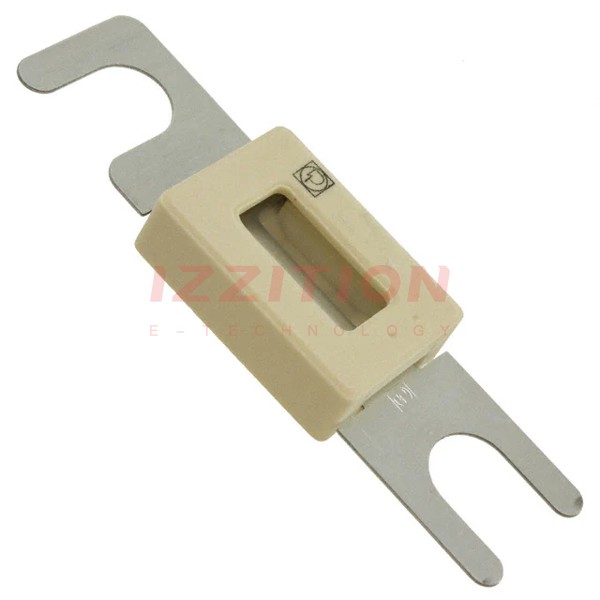

| Part Number | 157.5701.6201 | 157.5701.6251 | 157.5701.6231 | 157.5701.6301 | 157.5701.6271 | 157.5701.6401 | 157.5701.6501 | 157.5700.6201 | 157.5701.6101 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Mounting Type | Bolt Mount | Bolt Mount | Bolt Mount | Bolt Mount | Bolt Mount | Bolt Mount | Bolt Mount | Bolt Mount | Bolt Mount |
| Fuse Type | Fuse Strip | Fuse Strip | Fuse Strip | Fuse Strip | Fuse Strip | Fuse Strip | Fuse Strip | Fuse Strip | Fuse Strip |
| Current Rating (Amps) | 200A | 250A | 225A | 300A | 275A | 400A | 500A | 200A | 100A |
| Voltage Rating - AC | - | - | - | - | - | - | - | - | - |
| Voltage Rating - DC | 48 V | 48 V | 48 V | 48 V | 48 V | 48 V | 48 V | 48 V | 48 V |
| Response Time | - | - | - | - | - | - | - | - | - |
| Applications | Lift Trucks | Lift Trucks | Lift Trucks | Lift Trucks | Lift Trucks | Lift Trucks | Lift Trucks | Lift Trucks | Lift Trucks |
| Features | Indicating | Indicating | Indicating | Indicating | Indicating | Indicating | Indicating | - | Indicating |
| Class | - | - | - | - | - | - | - | - | - |
| Approval Agency | cURus | cURus | cURus | cURus | cURus | cURus | cURus | - | cURus |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Breaking Capacity @ Rated Voltage | 1.2kA | 1.5kA | 1.35kA | 1.8kA | 1.65kA | 2.4kA | 3kA | 1.2kA | 600A |
| Package / Case | Metal Strip | Metal Strip | Metal Strip | Metal Strip | Metal Strip | Metal Strip | Metal Strip | Metal Strip | Metal Strip |
| Size / Dimension | 3.228" L x 0.866" W x 0.413" H (82.00mm x 22.00mm x 10.50mm) | 3.228" L x 0.866" W x 0.413" H (82.00mm x 22.00mm x 10.50mm) | 3.228" L x 0.866" W x 0.413" H (82.00mm x 22.00mm x 10.50mm) | 3.228" L x 0.866" W x 0.413" H (82.00mm x 22.00mm x 10.50mm) | 3.228" L x 0.866" W x 0.413" H (82.00mm x 22.00mm x 10.50mm) | 3.228" L x 0.866" W x 0.413" H (82.00mm x 22.00mm x 10.50mm) | 3.228" L x 0.866" W x 0.413" H (82.00mm x 22.00mm x 10.50mm) | 3.228" L x 0.787" W x 0.030" H (82.00mm x 20.00mm x 0.75mm) | 3.228" L x 0.866" W x 0.413" H (82.00mm x 22.00mm x 10.50mm) |
