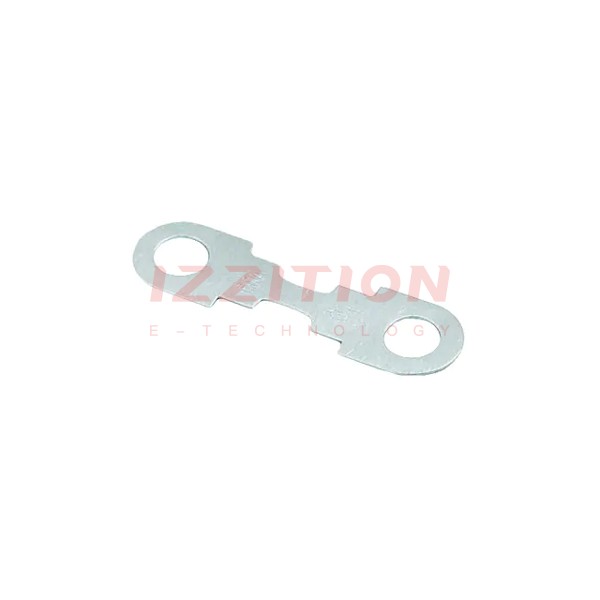

| Part Number | 156.5677.6171 | 156.5677.6172 | 156.5677.6111 | 156.5677.6151 |
|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active |
| Mounting Type | Bolt Mount | Bolt Mount | Bolt Mount | Bolt Mount |
| Fuse Type | Fuse Strip | Fuse Strip | Fuse Strip | Fuse Strip |
| Current Rating (Amps) | 175A | 175A | 110A | 150A |
| Voltage Rating - AC | - | - | - | - |
| Voltage Rating - DC | 32 V | 32 V | 32 V | 32 V |
| Response Time | - | - | - | - |
| Applications | Automotive | Automotive | Automotive | Automotive |
| Features | - | - | - | - |
| Class | - | - | - | - |
| Approval Agency | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Breaking Capacity @ Rated Voltage | 1kA | 1kA | 1kA | 1kA |
| Package / Case | Metal Strip | Metal Strip | Metal Strip | Metal Strip |
| Size / Dimension | 1.654" L x 0.472" W x 0.031" H (42.00mm x 12.00mm x 0.80mm) | 1.654" L x 0.472" W x 0.031" H (42.00mm x 12.00mm x 0.80mm) | 1.654" L x 0.472" W x 0.031" H (42.00mm x 12.00mm x 0.80mm) | 1.654" L x 0.472" W x 0.031" H (42.00mm x 12.00mm x 0.80mm) |
