Please send RFQ , we will respond immediately.

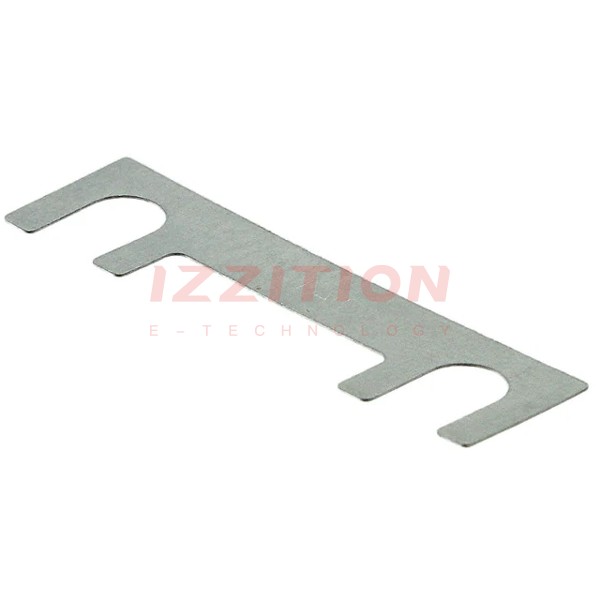

| Part Number | 156.5610.5802 | 156.5610.5302 | 156.5610.5402 | 156.5610.5502 | 156.5610.5602 | 156.5610.5801 |
|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Mounting Type | Bolt Mount | Bolt Mount | Bolt Mount | Bolt Mount | Bolt Mount | Bolt Mount |
| Fuse Type | Fuse Strip | Fuse Strip | Fuse Strip | Fuse Strip | Fuse Strip | Fuse Strip |
| Current Rating (Amps) | 80A | 30A | 40A | 50A | 60A | 80A |
| Voltage Rating - AC | - | - | - | - | - | - |
| Voltage Rating - DC | 36 V | 36 V | 36 V | 36 V | 36 V | 36 V |
| Response Time | - | - | - | - | - | - |
| Applications | Lift Trucks | Lift Trucks | Lift Trucks | Lift Trucks | Lift Trucks | Lift Trucks |
| Features | - | - | - | - | - | - |
| Class | - | - | - | - | - | - |
| Approval Agency | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Breaking Capacity @ Rated Voltage | - | - | - | - | - | - |
| Package / Case | Metal Strip | Metal Strip | Metal Strip | Metal Strip | Metal Strip | Metal Strip |
| Size / Dimension | 1.614" L x 0.433" W x 0.043" H (41.00mm x 11.00mm x 1.08mm) | 1.614" L x 0.433" W x 0.043" H (41.00mm x 11.00mm x 1.08mm) | 1.614" L x 0.433" W x 0.043" H (41.00mm x 11.00mm x 1.08mm) | 1.614" L x 0.433" W x 0.043" H (41.00mm x 11.00mm x 1.08mm) | 1.614" L x 0.433" W x 0.043" H (41.00mm x 11.00mm x 1.08mm) | 1.614" L x 0.433" W x 0.043" H (41.00mm x 11.00mm x 1.08mm) |
