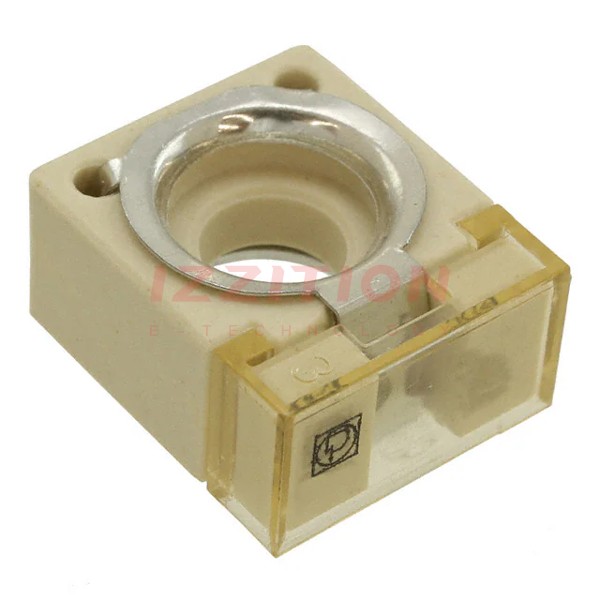

| Part Number | 155.0892.6301 | 155.0892.6101 | 155.0892.6201 |
|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active |
| Mounting Type | Bolt Mount | Bolt Mount | Bolt Mount |
| Fuse Type | Square | Square | Square |
| Current Rating (Amps) | 300A | 100A | 200A |
| Voltage Rating - AC | - | - | - |
| Voltage Rating - DC | 58 V | 58 V | 58 V |
| Response Time | - | - | - |
| Applications | Electrical, Industrial | Electrical, Industrial | Electrical, Industrial |
| Features | Indicating | Indicating | Indicating |
| Class | - | - | - |
| Approval Agency | cURus | cURus | cURus |
| Operating Temperature | - | - | - |
| Breaking Capacity @ Rated Voltage | 2kA | 2kA | 2kA |
| Package / Case | Rectangular | Rectangular | Rectangular |
| Size / Dimension | 0.925" L x 0.787" W x 0.453" H (23.50mm x 20.00mm x 11.50mm) | 0.925" L x 0.787" W x 0.453" H (23.50mm x 20.00mm x 11.50mm) | 0.925" L x 0.787" W x 0.453" H (23.50mm x 20.00mm x 11.50mm) |
