Littelfuse Inc.-153.5631.6151 - Fuses Product Specifications and Latest Quotes

Mounting Type:	Bolt Mount
Fuse Type:	Automotive
Current Rating (Amps):	150 A
Voltage Rating - AC:	-
Voltage Rating - DC:	32 V
Response Time:	Slow Blow
Package / Case:	Auto Link
Breaking Capacity @ Rated Voltage:	2kA
Melting I²t:	83400
Approval Agency:	ISO, UL
Operating Temperature:	-
Color:	Gray
Size / Dimension:	0.630" L x 0.472" W x 0.323" H (16.00mm x 12.00mm x 8.20mm)

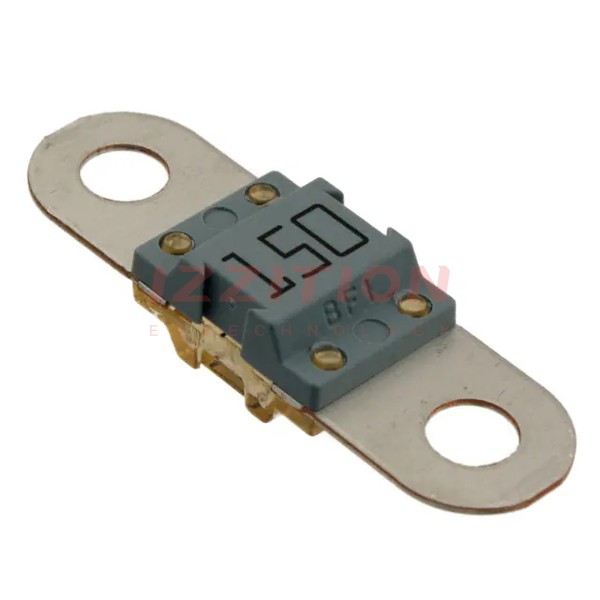

Littelfuse Inc. 153.5631.6151
