1210L450/12SLWR
  • Share:

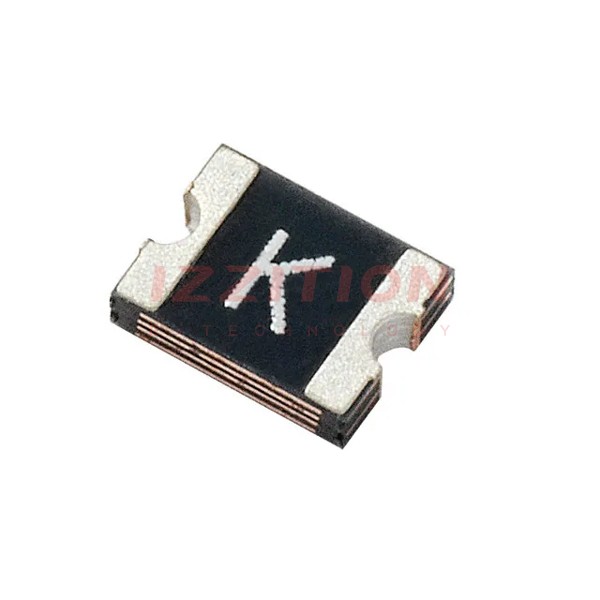

Littelfuse Inc. 1210L450/12SLWR

Manufacturer No:
1210L450/12SLWR
Manufacturer:
Littelfuse Inc.
Package:
Tape & Reel (TR)
Datasheet:
1210L450/12SLWR Datasheet
ECAD Model:
-
Description:
PTC 12V POLYFUSE SMT 1210 SL 4.5
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Polymeric
Voltage - Max:12V
Current - Max:50 A
Current - Hold (Ih) (Max):4.5 A
Current - Trip (It):9 A
Time to Trip:2 s
Resistance - Initial (Ri) (Min):1 MOhms
Resistance - Post Trip (R1) (Max):14 mOhms
Resistance - 25°C (Typ):-
Operating Temperature:-40°C ~ 85°C
Ratings:-
Mounting Type:Surface Mount
Package / Case:1210 (3225 Metric), Concave
Size / Dimension:0.127" L x 0.101" W (3.22mm x 2.58mm)
Height - Seated (Max):-
Thickness (Max):0.055" (1.40mm)
Lead Spacing:-
0 Remaining View Similar

In Stock

$2.04
410

Please send RFQ , we will respond immediately.
