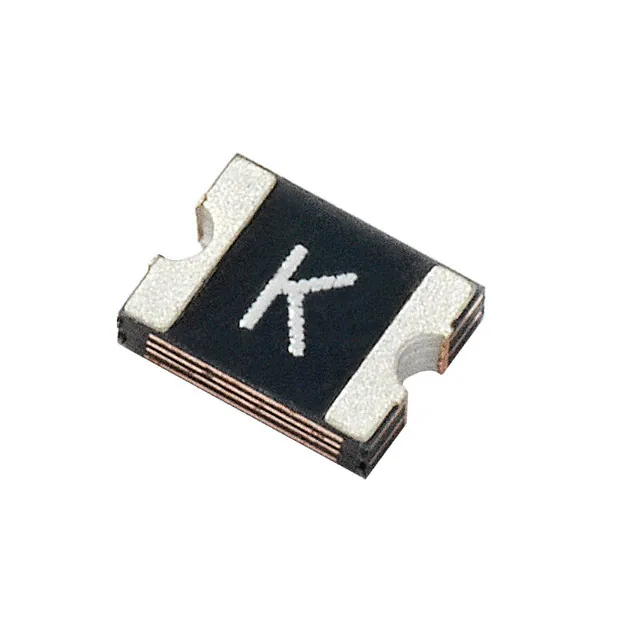

| Part Number | 1210L075YR | 1210L035YR |
|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active |
| Type | Polymeric | Polymeric |
| Voltage - Max | 6V | 6V |
| Current - Max | 100 A | 100 A |
| Current - Hold (Ih) (Max) | 750 mA | 350 mA |
| Current - Trip (It) | 1.5 A | 700 mA |
| Time to Trip | 100 ms | 200 ms |
| Resistance - Initial (Ri) (Min) | 130 mOhms | 320 mOhms |
| Resistance - Post Trip (R1) (Max) | 400 mOhms | 1.3 Ohms |
| Resistance - 25°C (Typ) | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Ratings | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 1210 (3225 Metric), Concave | 1210 (3225 Metric), Concave |
| Size / Dimension | 0.127" L x 0.102" W (3.22mm x 2.58mm) | 0.127" L x 0.102" W (3.22mm x 2.58mm) |
| Height - Seated (Max) | - | - |
| Thickness (Max) | 0.033" (0.85mm) | 0.033" (0.85mm) |
| Lead Spacing | - | - |
