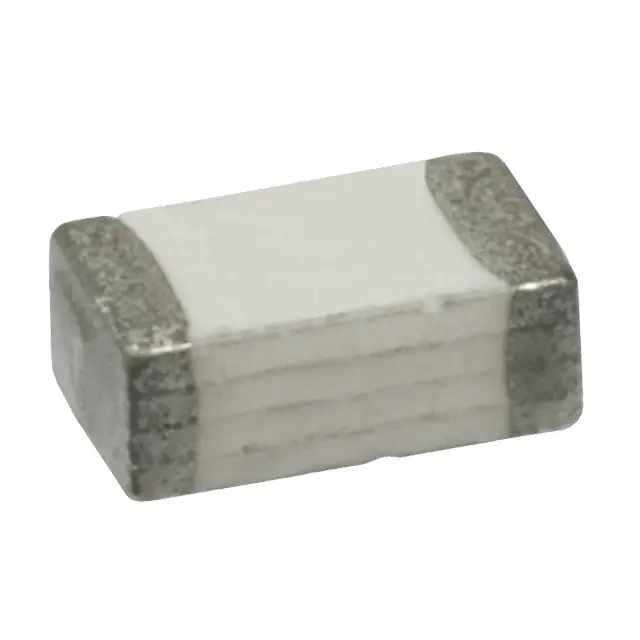

Littelfuse Inc.-1206SFS550F/24-2 - Fuses Product Specifications and Latest Quotes

Mounting Type:	Surface Mount
Fuse Type:	Board Mount (Cartridge Style Excluded)
Current Rating (Amps):	5.5 A
Voltage Rating - AC:	-
Voltage Rating - DC:	24 V
Response Time:	Slow Blow
Package / Case:	1206 (3216 Metric)
Breaking Capacity @ Rated Voltage:	50A
Melting I²t:	6.4
Approval Agency:	UL
Operating Temperature:	-55°C ~ 125°C
Color:	-
Size / Dimension:	0.126" L x 0.063" W x 0.038" H (3.20mm x 1.60mm x 0.97mm)

Littelfuse Inc. 1206SFS550F/24-2
