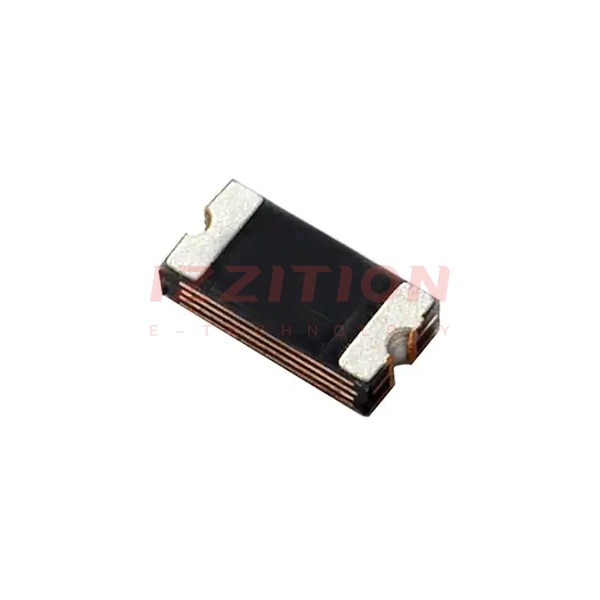

| Part Number | 1206L150/12SLYR | 1206L110/12SLYR |
|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active |
| Type | Polymeric | Polymeric |
| Voltage - Max | 12V | 12V |
| Current - Max | 50 A | 50 A |
| Current - Hold (Ih) (Max) | 1.5 A | 1.1 A |
| Current - Trip (It) | 3 A | 2.2 A |
| Time to Trip | 300 ms | 300 ms |
| Resistance - Initial (Ri) (Min) | 10 mOhms | 15 mOhms |
| Resistance - Post Trip (R1) (Max) | 80 mOhms | 130 mOhms |
| Resistance - 25°C (Typ) | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Ratings | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 1206 (3216 Metric), Concave | 1206 (3216 Metric), Concave |
| Size / Dimension | 0.126" L x 0.065" W (3.20mm x 1.65mm) | 0.126" L x 0.065" W (3.20mm x 1.65mm) |
| Height - Seated (Max) | - | - |
| Thickness (Max) | 0.033" (0.85mm) | 0.033" (0.85mm) |
| Lead Spacing | - | - |
