1206L050/24WR
  • Share:

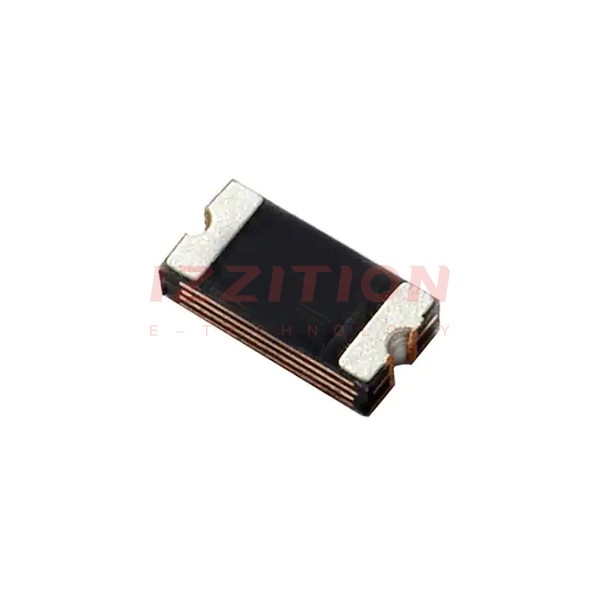

Littelfuse Inc. 1206L050/24WR

Manufacturer No:
1206L050/24WR
Manufacturer:
Littelfuse Inc.
Package:
Tape & Reel (TR)
Datasheet:
1206L050/24WR Datasheet
ECAD Model:
-
Description:
PTC RESET FUSE 24V 500MA 1206
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Polymeric
Voltage - Max:24V
Current - Max:100 A
Current - Hold (Ih) (Max):500 mA
Current - Trip (It):1 A
Time to Trip:100 ms
Resistance - Initial (Ri) (Min):150 mOhms
Resistance - Post Trip (R1) (Max):750 mOhms
Resistance - 25°C (Typ):-
Operating Temperature:-40°C ~ 85°C
Ratings:AEC-Q200
Mounting Type:Surface Mount
Package / Case:1206 (3216 Metric), Concave
Size / Dimension:0.126" L x 0.065" W (3.20mm x 1.65mm)
Height - Seated (Max):-
Thickness (Max):0.049" (1.25mm)
Lead Spacing:-
0 Remaining View Similar

In Stock

$1.52
136

Please send RFQ , we will respond immediately.
