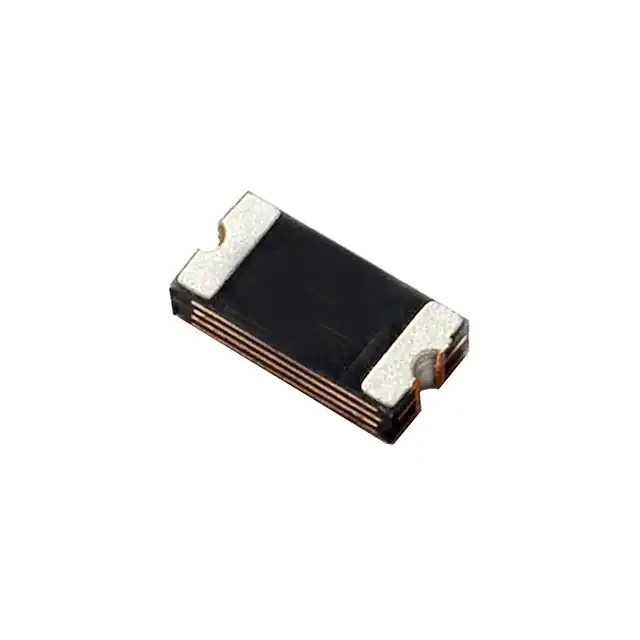

| Part Number | 1206L016WR | 1206L012WR |
|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active |
| Type | Polymeric | Polymeric |
| Voltage - Max | 30V | 30V |
| Current - Max | 100 A | 100 A |
| Current - Hold (Ih) (Max) | 160 mA | 125 mA |
| Current - Trip (It) | 370 mA | 290 mA |
| Time to Trip | 300 ms | 200 ms |
| Resistance - Initial (Ri) (Min) | 1.2 Ohms | 1.5 Ohms |
| Resistance - Post Trip (R1) (Max) | 4.5 Ohms | 6 Ohms |
| Resistance - 25°C (Typ) | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Ratings | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 1206 (3216 Metric), Concave | 1206 (3216 Metric), Concave |
| Size / Dimension | 0.126" L x 0.065" W (3.20mm x 1.65mm) | 0.126" L x 0.065" W (3.20mm x 1.65mm) |
| Height - Seated (Max) | - | - |
| Thickness (Max) | 0.057" (1.45mm) | 0.057" (1.45mm) |
| Lead Spacing | - | - |
