Please send RFQ , we will respond immediately.

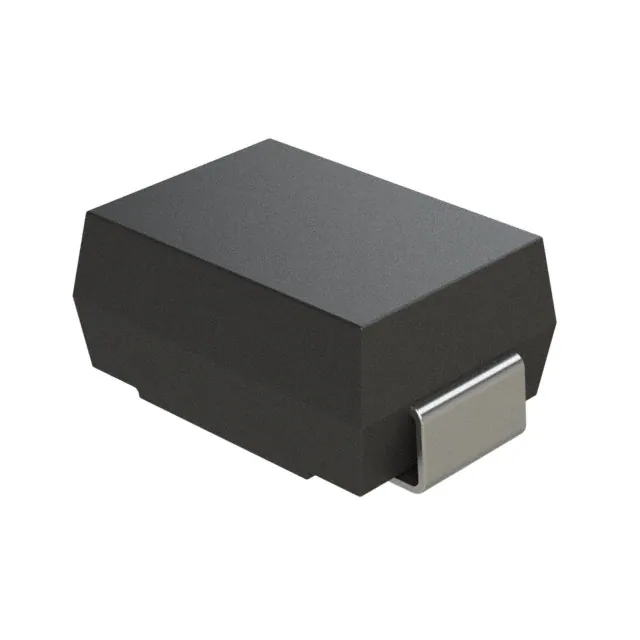

| Part Number | 1.5SMB27CA | 1.5SMB47CA | 1.5SMB20CA | 1.5SMB22CA | 1.5SMB23CA | 1.5SMB24CA | 1.5SMB27A |
|---|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | - | - | - | - | - | - | 1 |
| Bidirectional Channels | 1 | 1 | 1 | 1 | 1 | 1 | - |
| Voltage - Reverse Standoff (Typ) | 23.1V | 40.2V | 17.1V | 18.8V | 20V | 20.5V | 23.1V |
| Voltage - Breakdown (Min) | 25.7V | 44.7V | 19V | 20.9V | 22V | 22.8V | 25.7V |
| Voltage - Clamping (Max) @ Ipp | 37.5V | 64.8V | 27.7V | 30.6V | 33.2V | 33.2V | 37.5V |
| Current - Peak Pulse (10/1000µs) | 40.5A | 23.5A | 54.9A | 49.7A | 45A | 45A | 40.5A |
| Power - Peak Pulse | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) |
| Power Line Protection | No | No | No | No | No | No | No |
| Applications | Telecom | Telecom | Telecom | Telecom | Telecom | Telecom | Telecom |
| Capacitance @ Frequency | - | - | - | - | - | - | - |
| Operating Temperature | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB |
| Supplier Device Package | DO-214AA (SMBJ) | DO-214AA (SMBJ) | DO-214AA (SMBJ) | DO-214AA (SMBJ) | DO-214AA (SMBJ) | DO-214AA (SMBJ) | DO-214AA (SMBJ) |
