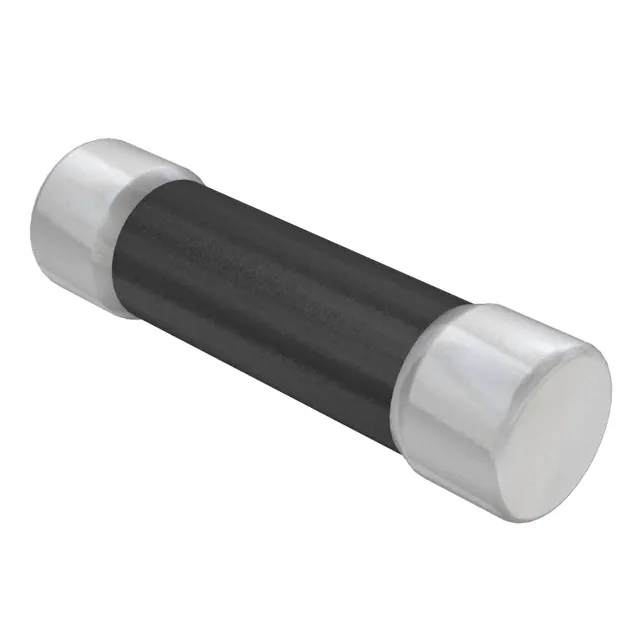

| Part Number | 0SPF030.H | 0SPF030.T | 0SPF010.H | 0SPF020.H |
|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active |
| Mounting Type | Holder | Holder | Holder | Holder |
| Fuse Type | Cartridge | Cartridge | Cartridge | Cartridge |
| Current Rating (Amps) | 30A | 30A | 10A | 20A |
| Voltage Rating - AC | - | - | - | - |
| Voltage Rating - DC | 1 kV | 1 kV | 1 kV | 1 kV |
| Response Time | Fast Blow | Fast Blow | Fast Blow | Fast Blow |
| Applications | Solar (Photovoltaic) | Solar (Photovoltaic) | Solar (Photovoltaic) | Solar (Photovoltaic) |
| Features | - | - | - | - |
| Class | - | - | - | - |
| Approval Agency | CE, CSA, UL | CE, CSA, UL | CE, CSA, UL, VDE | CE, CSA, UL, VDE |
| Operating Temperature | - | - | - | - |
| Breaking Capacity @ Rated Voltage | 20kA | 20kA | 20kA | 20kA |
| Package / Case | 5AG, 10mm x 38mm (Midget) | 5AG, 10mm x 38mm (Midget) | 5AG, 10mm x 38mm (Midget) | 5AG, 10mm x 38mm (Midget) |
| Size / Dimension | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) |
